Provides essential connector functionality with simple, reliable designs, including friction locks, unshrouded housings and tin-plated terminals.

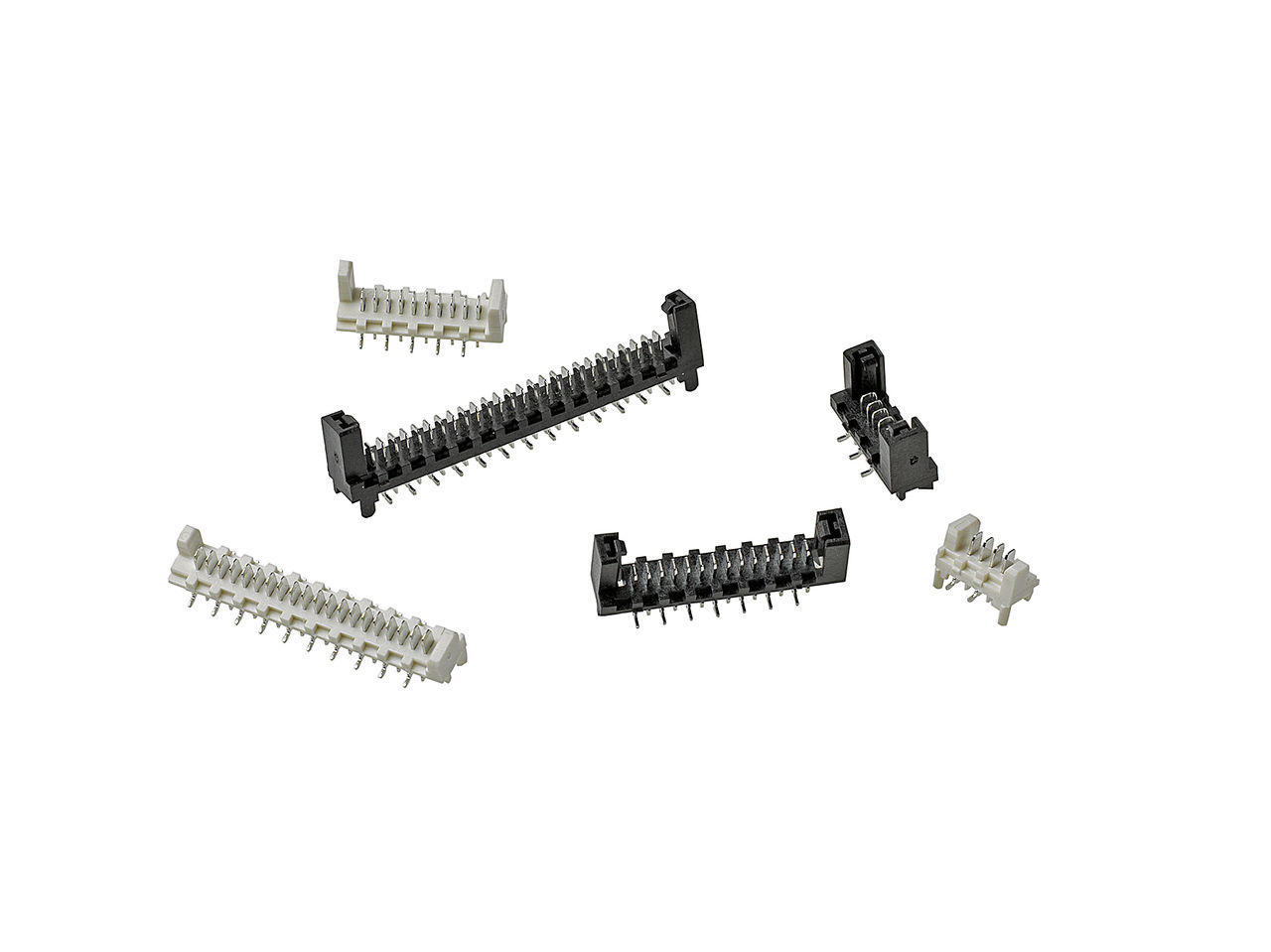

Basic Wire-to-Board Connectors
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 1.00mm | Up to 2.5A | 32 to 28 AWG | Up to 100V | Surface-mount technology (SMT) |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|

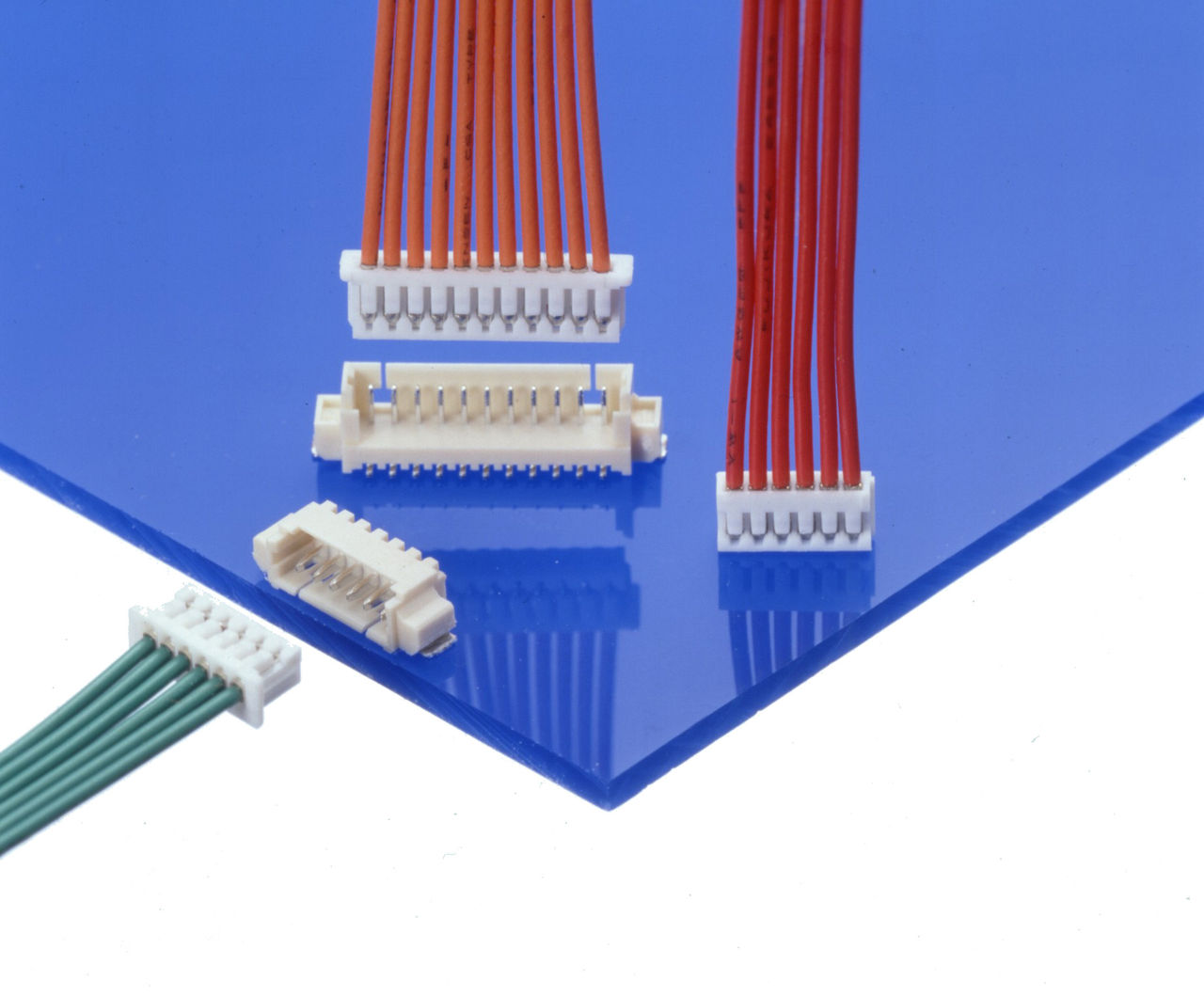

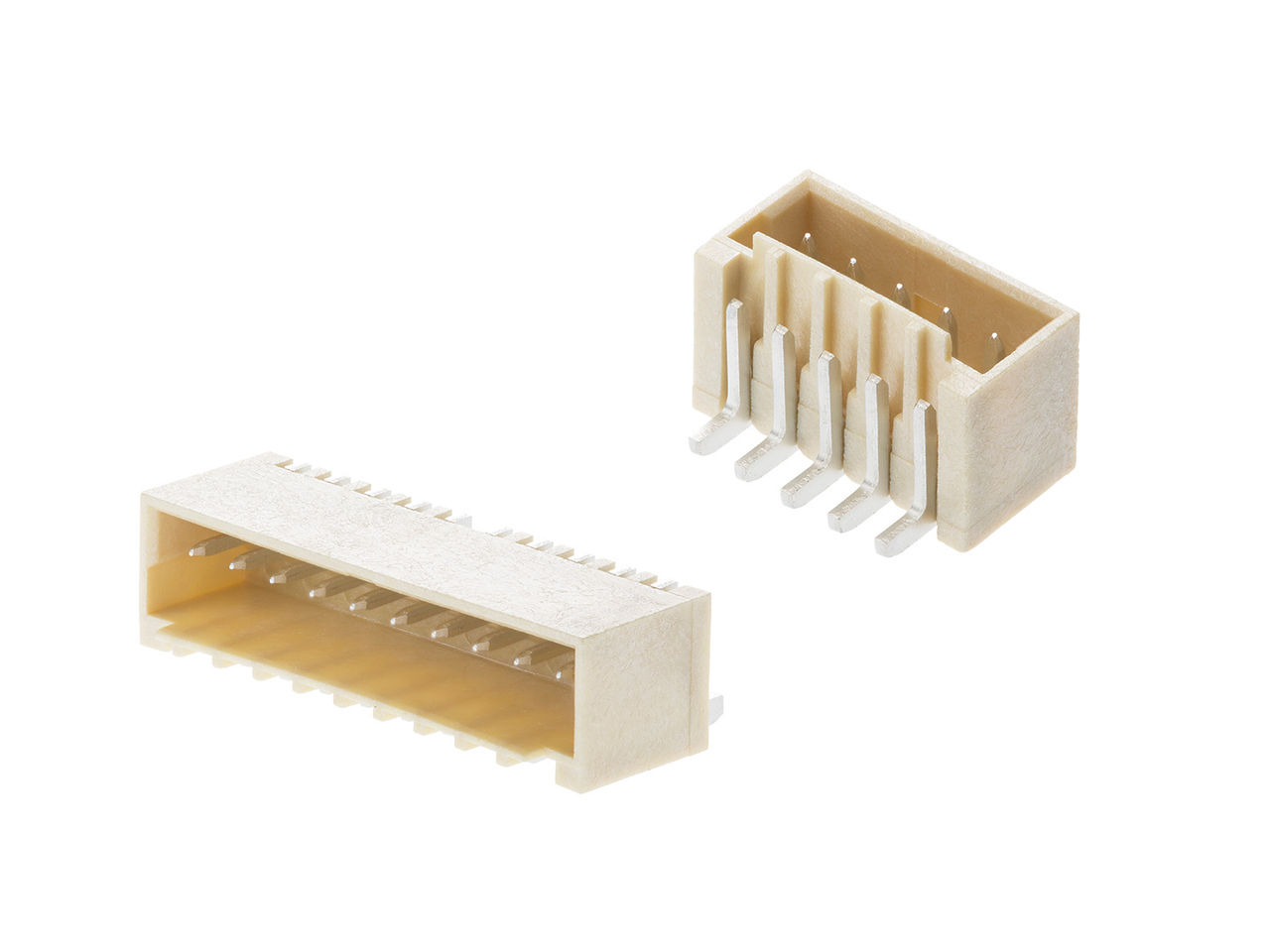

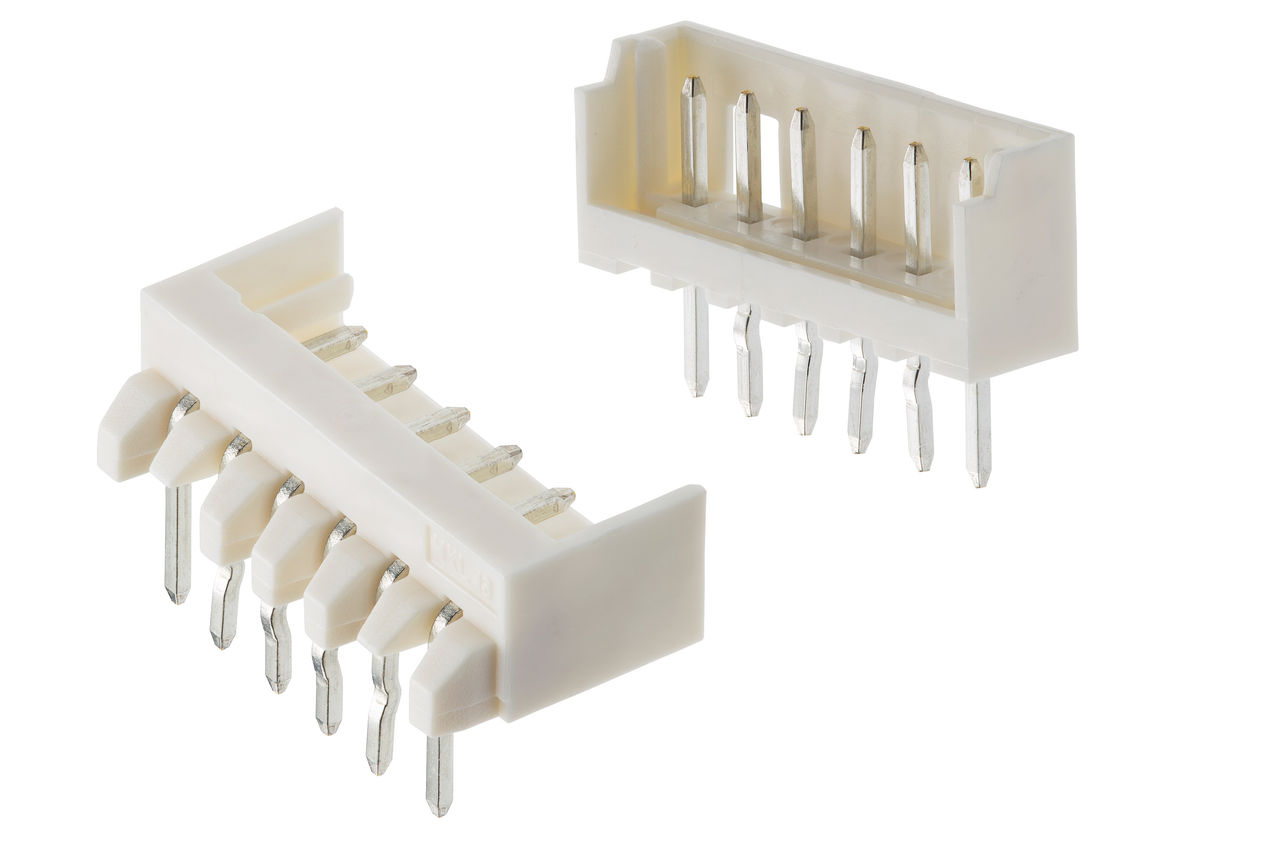

| 1.25mm | Up to 3.0A | 32 to 26 AWG | Up to 250V | Through hole, SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 1.50mm | Up to 3.5A | 30 to 24 AWG | Up to 250V AC RMS/DC | SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|

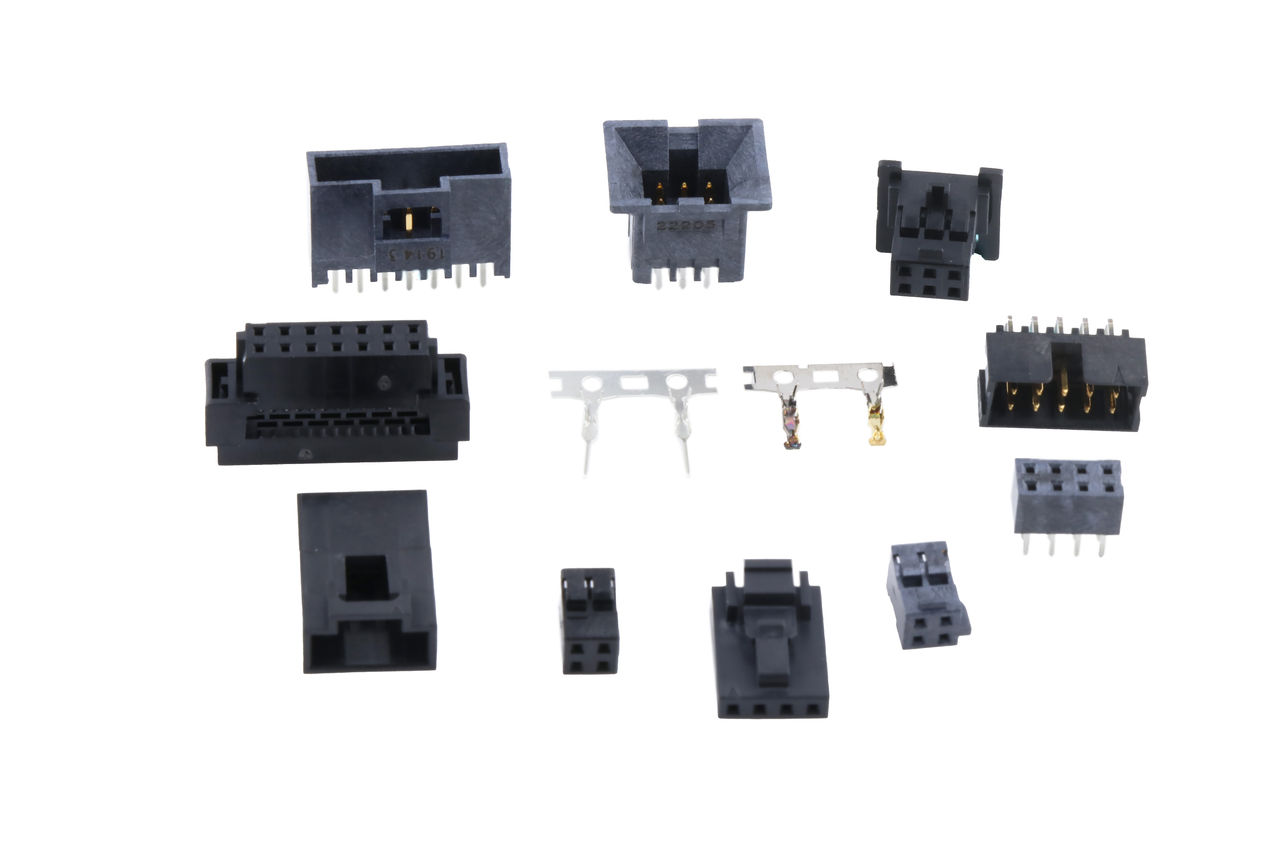

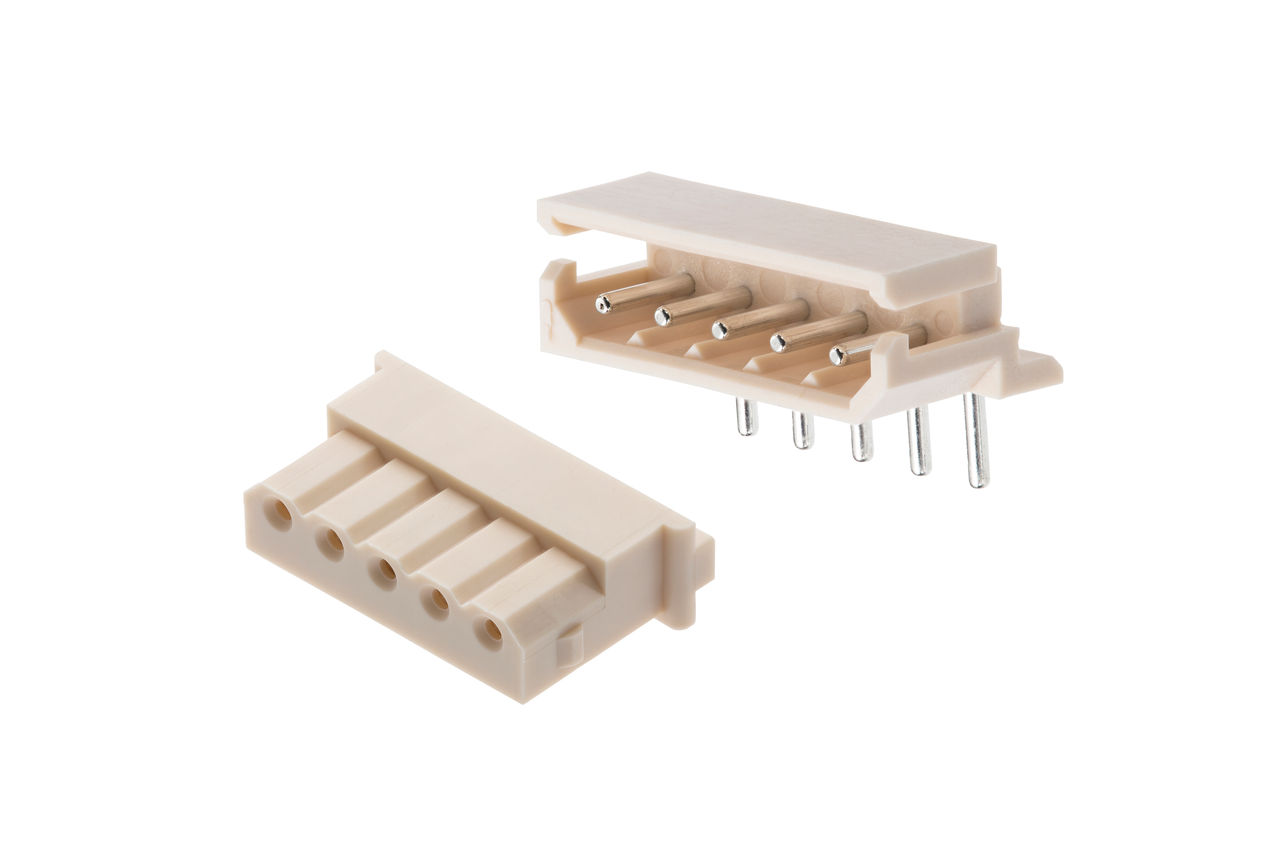

| 2.00mm | Up to 2.5A | 30 to 22 AWG | Up to 250V | Through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.00mm | Up to 2.5A | 30 to 22 AWG | Up to 125V | Through hole, SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|

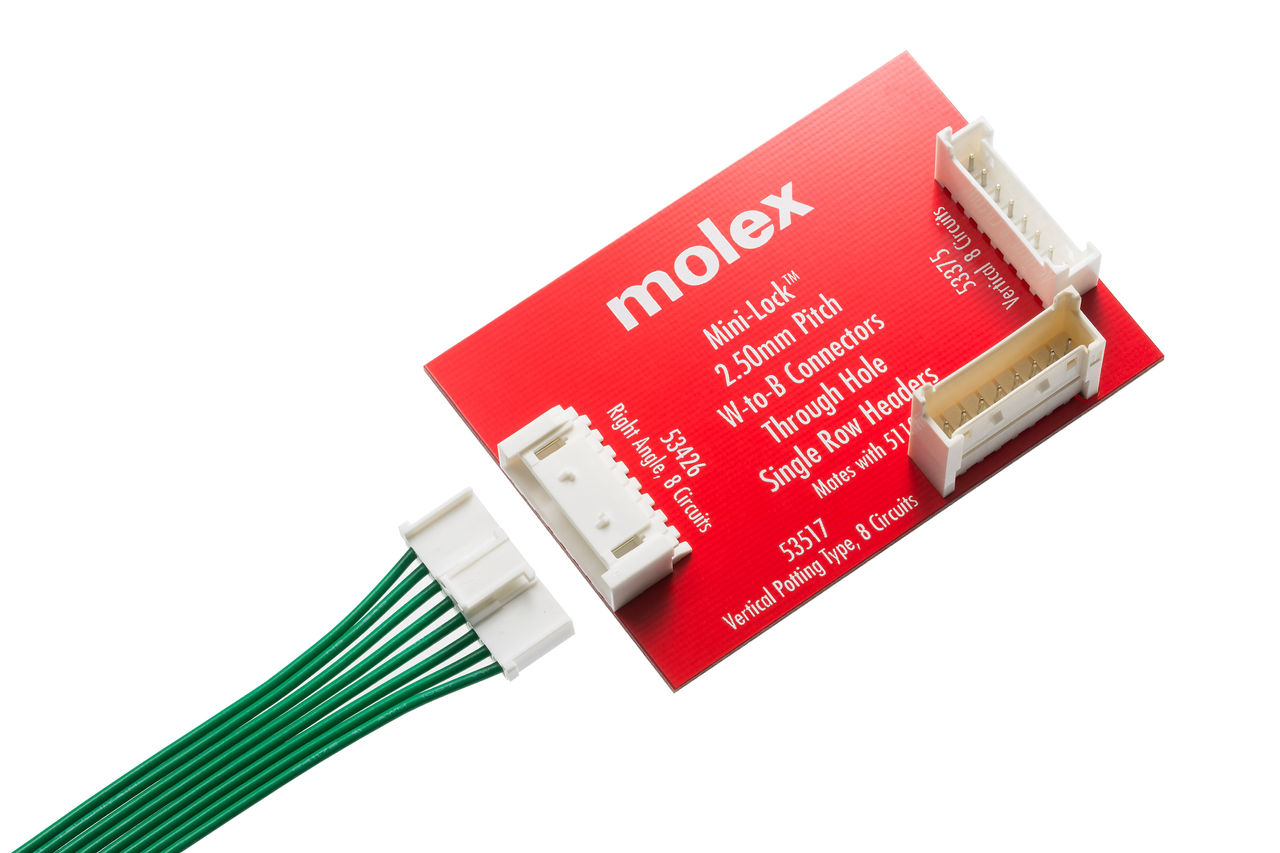

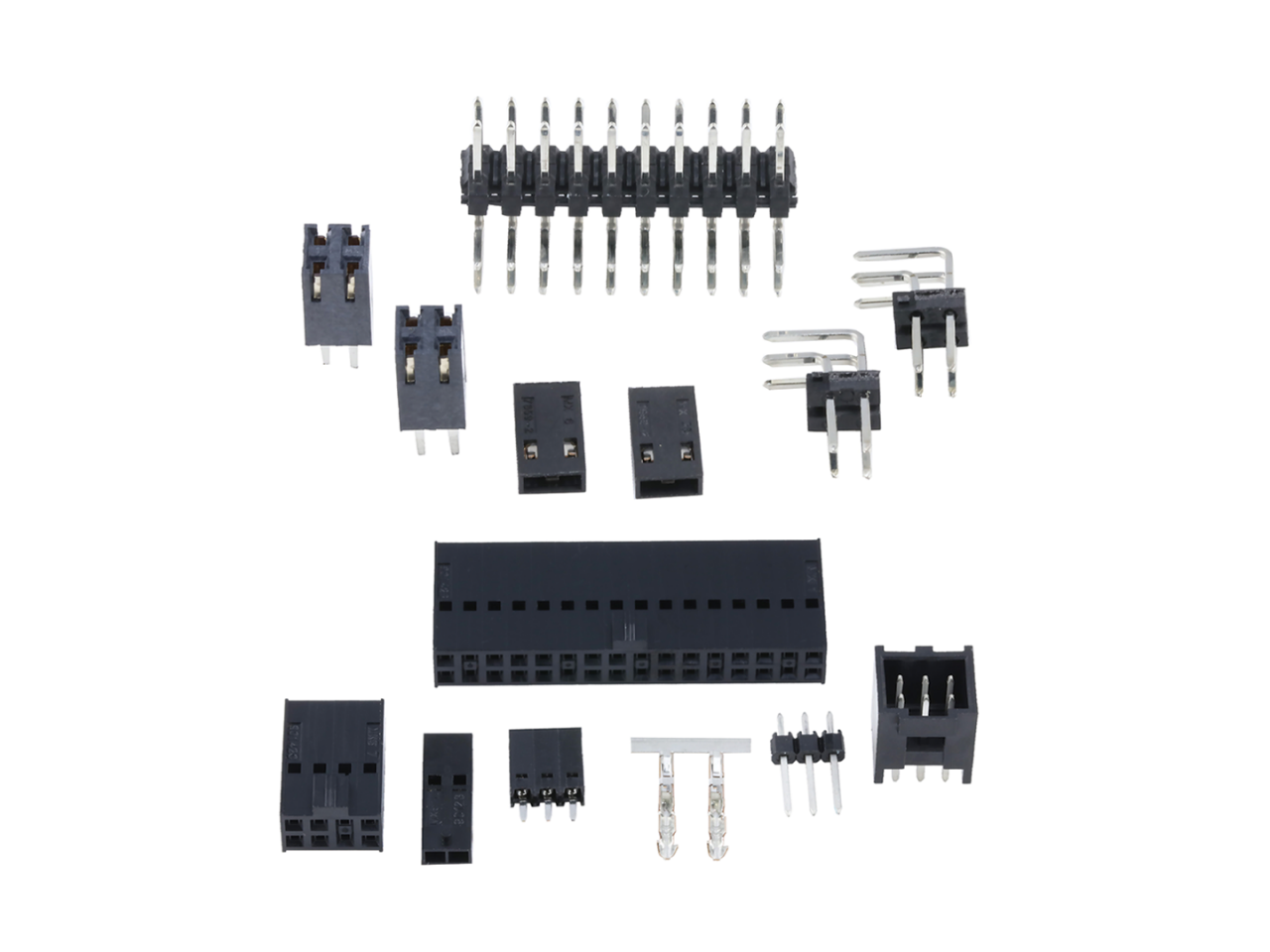

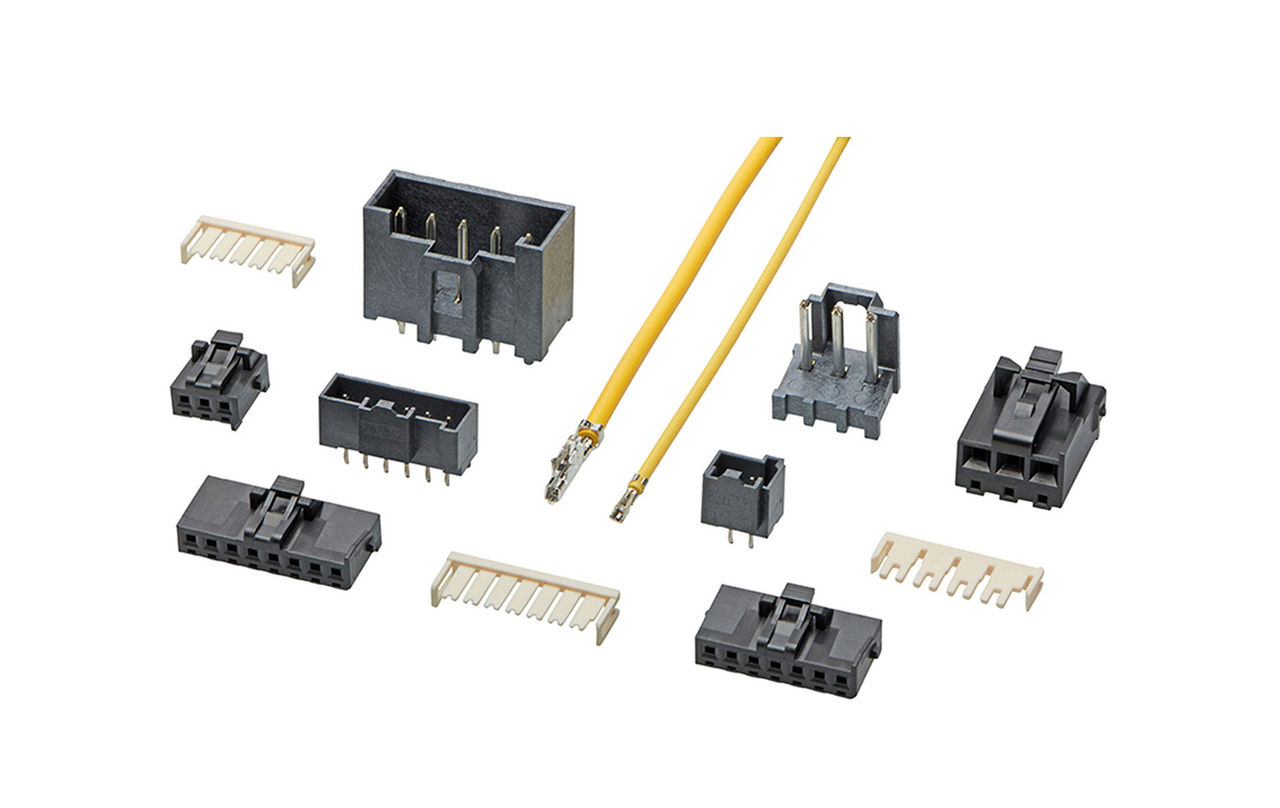

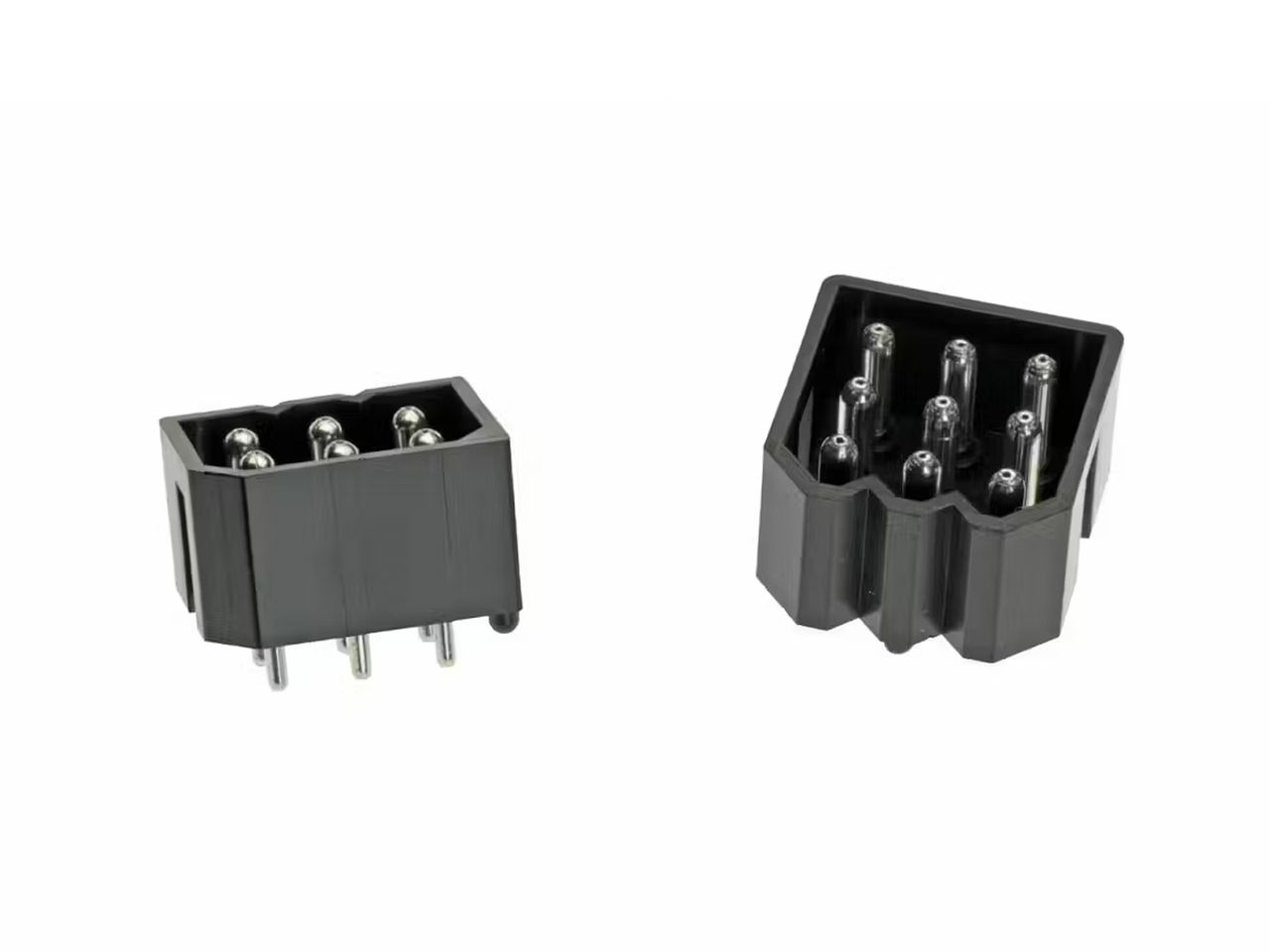

| 2.50mm | Up to 3.0A | 28 to 22 AWG | Up to 250V | Through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.54mm | Up to 3.0A | 28 to 22 AWG | Up to 250V | Through hole, SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.50, 2.54, 3.00, 3.96, 5.08mm | Up to 11.0A | 30 to 18 AWG | Up to 350V | Through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 3.68 to 6.70mm | Up to 17.0A | 30 to 14 AWG | Up to 250V | Through hole |
Enhanced Wire-to-Board Connectors
Provides added functionality and reliability beyond basic connectors, featuring positive locking, optional gold plating and terminal position assurance (TPA) options for improved performance and secure connections.

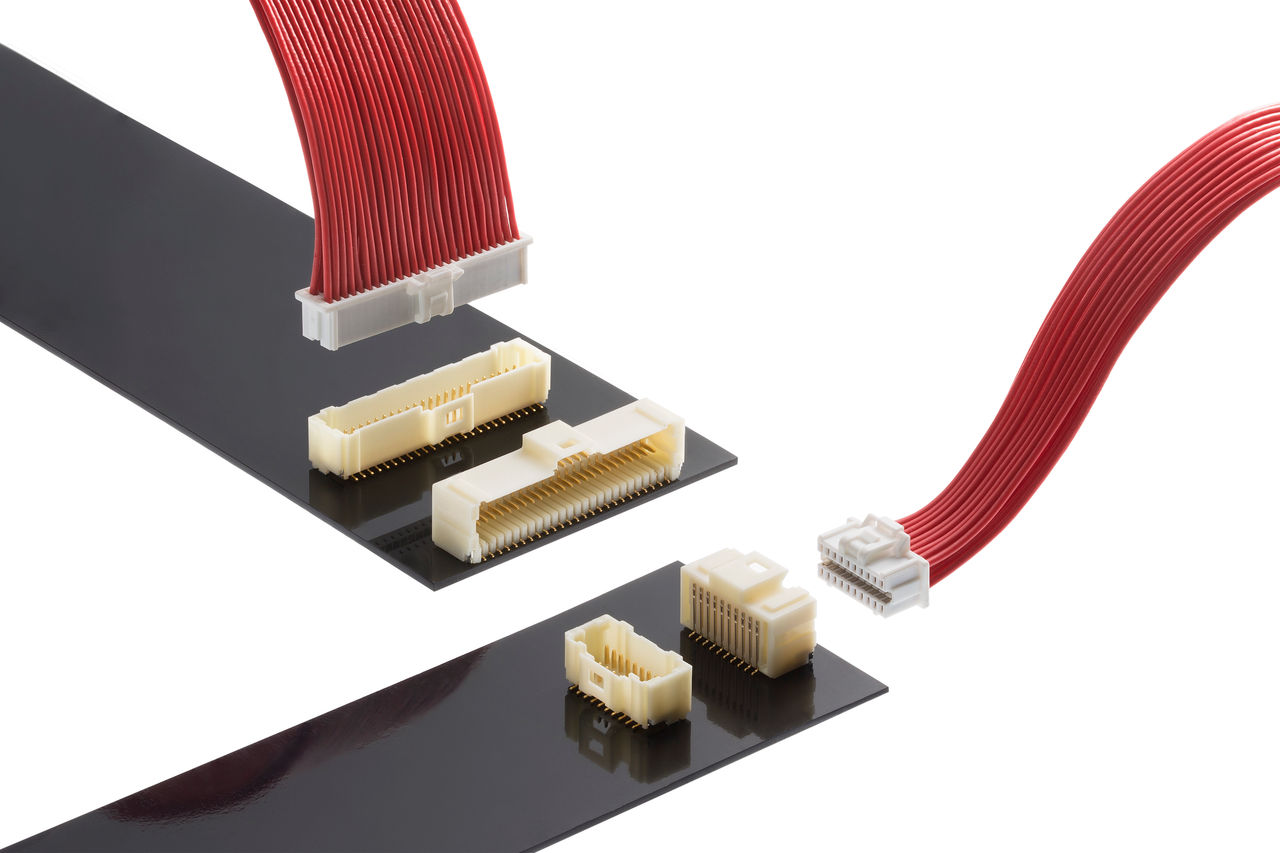

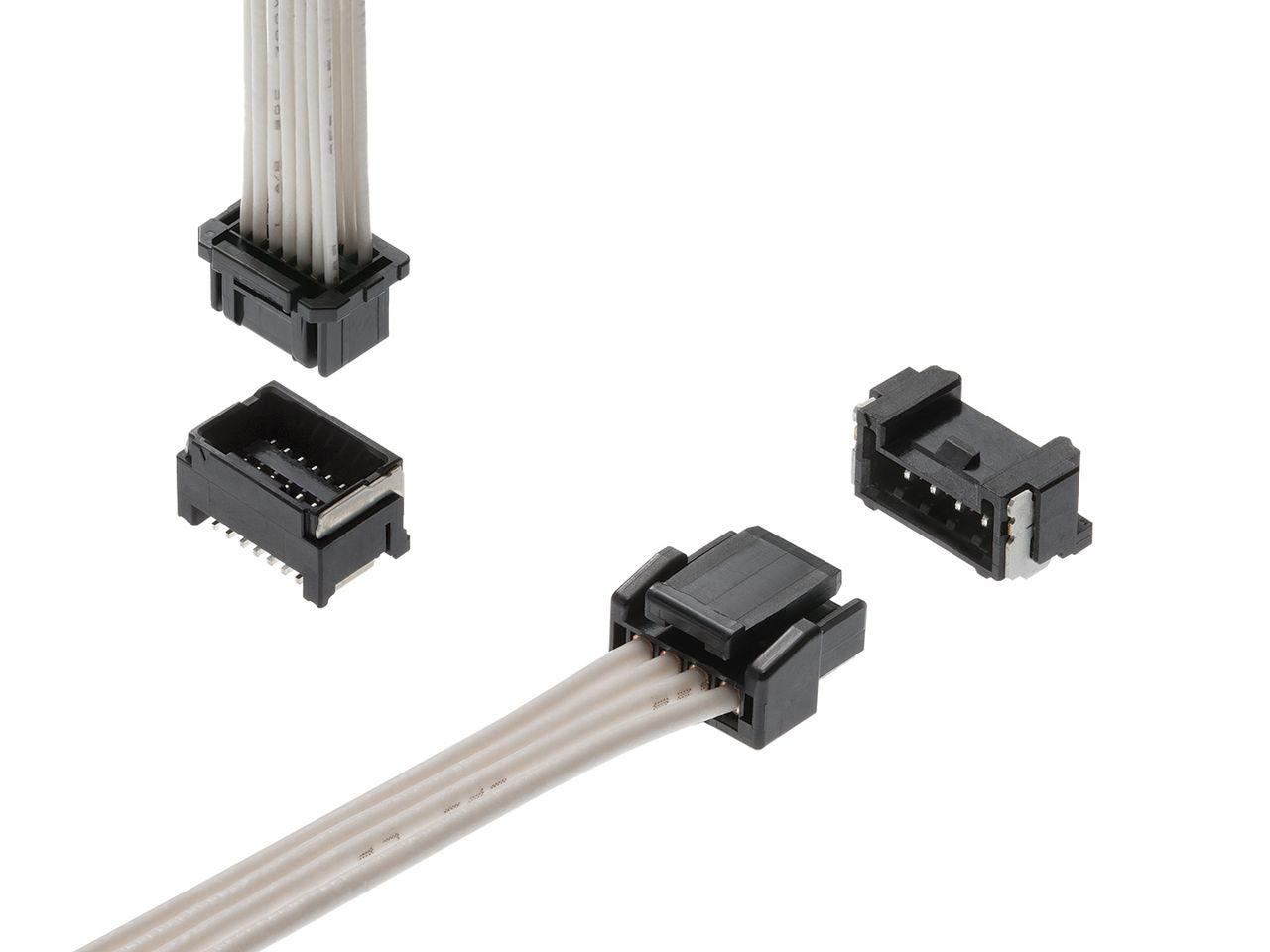

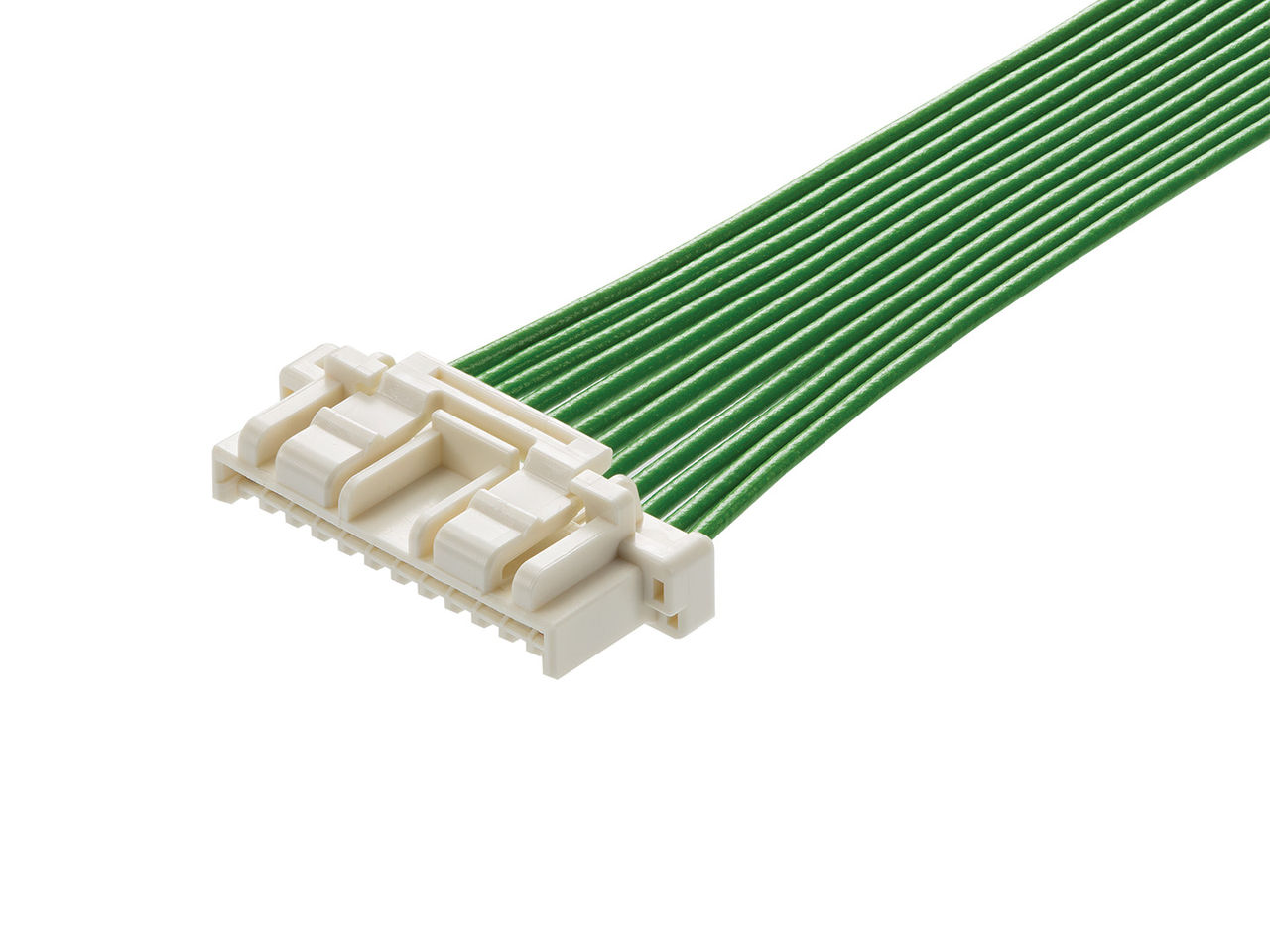

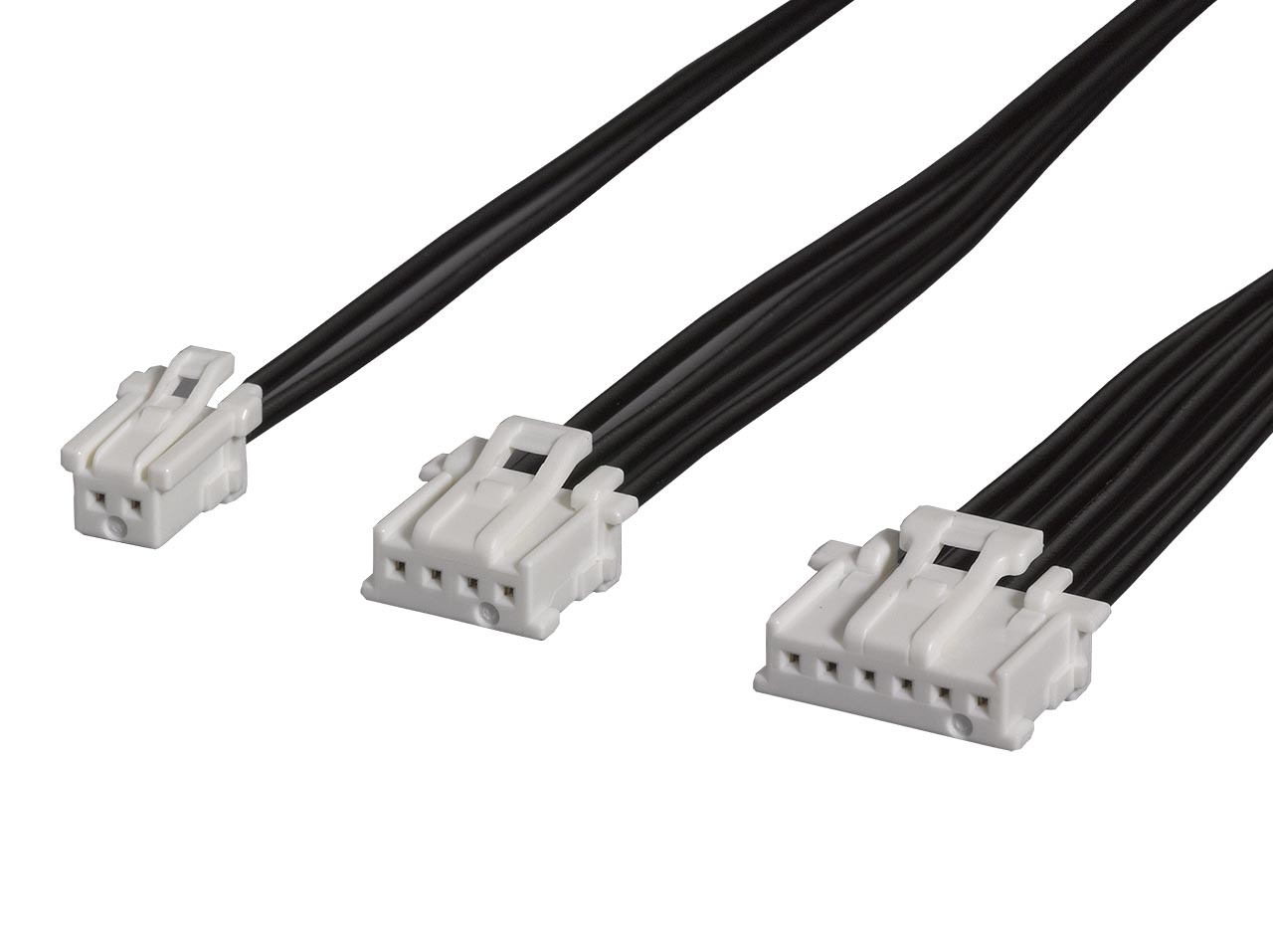

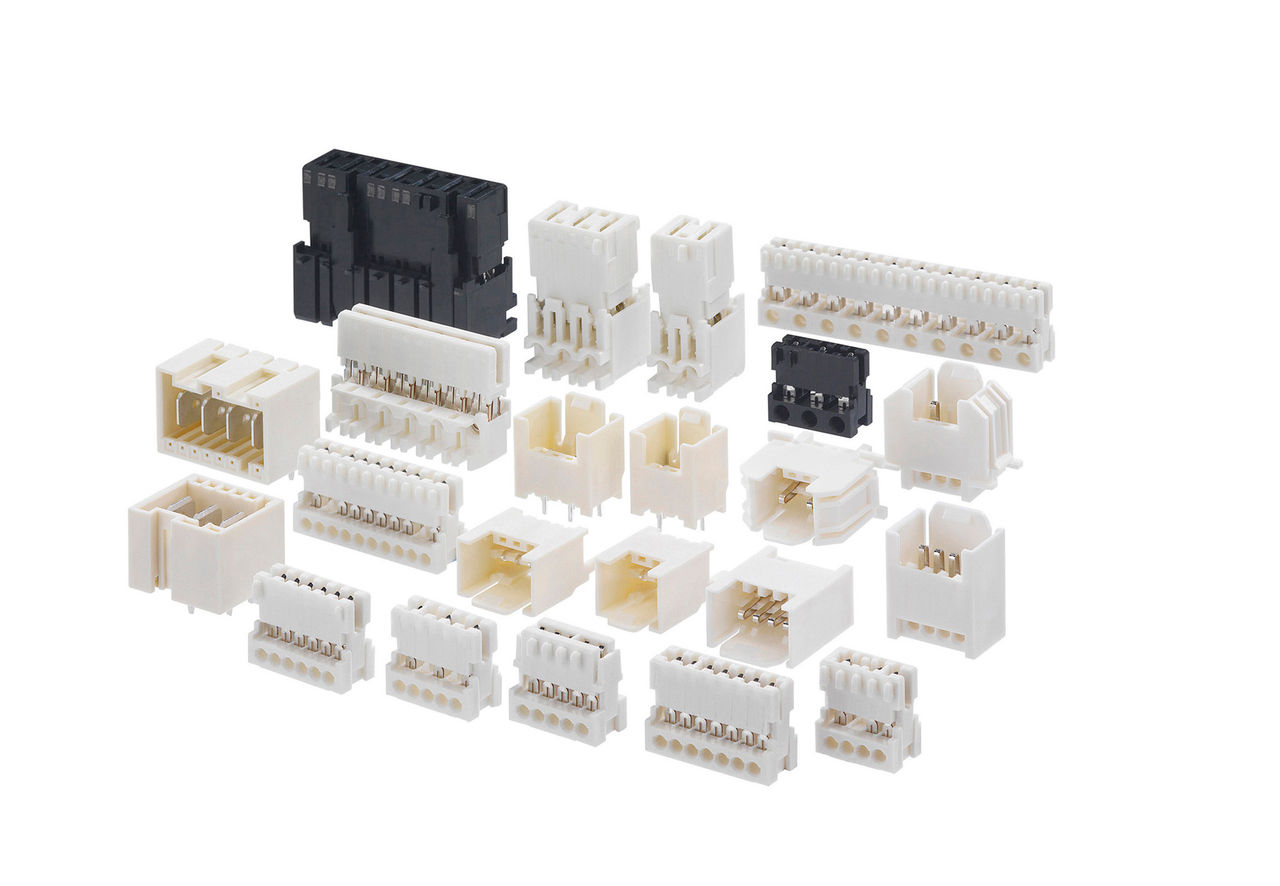

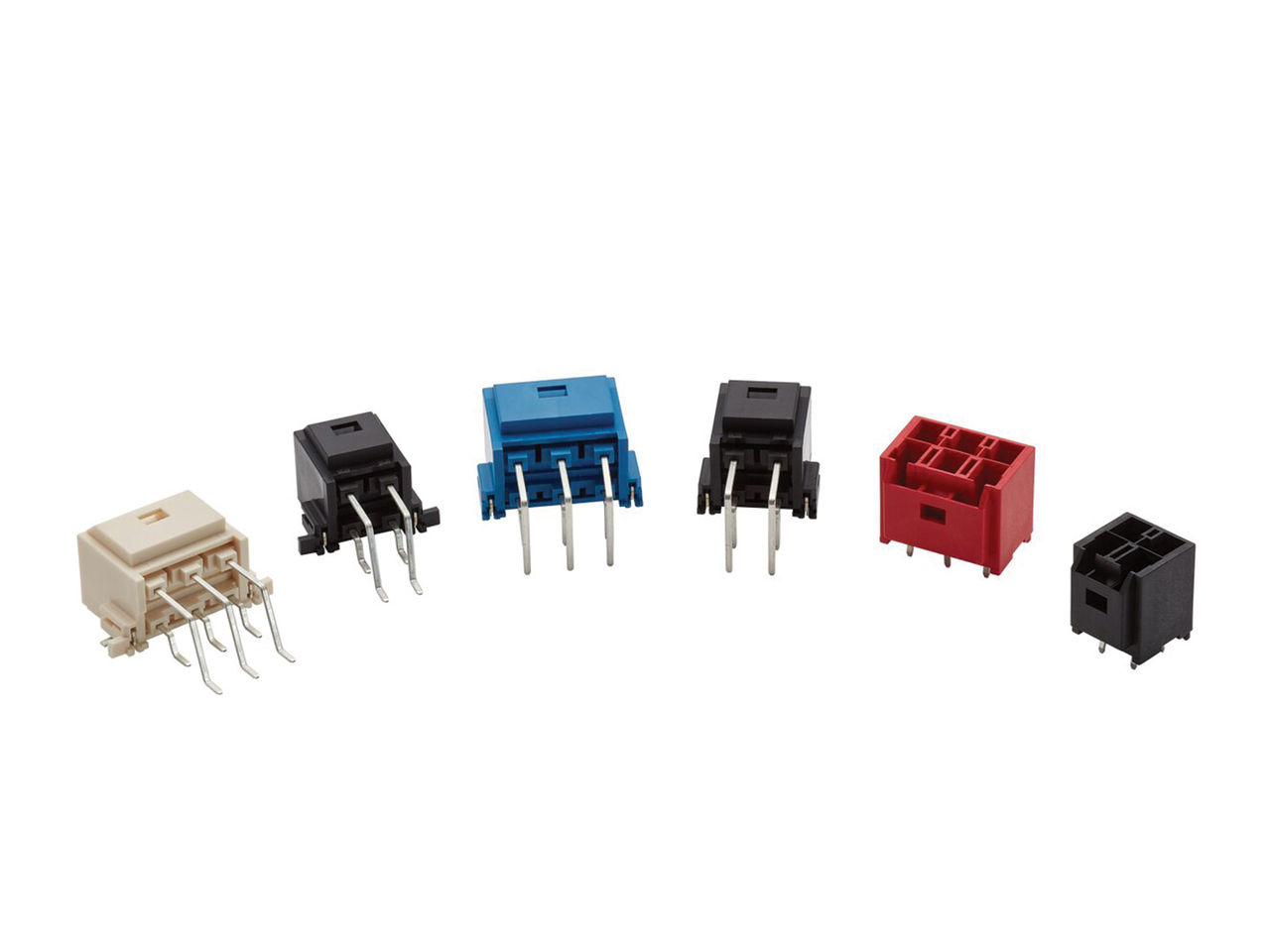

| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 1.00mm | Up to 2.0A | 32 to 28 AWG | Up to 100V | SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 1.25, 1.50, 2.00mm | Up to 4.7A | 30 to 22 AWG | Up to 250V | SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 1.25, 1.50, 2.00mm | Up to 4.0A | 30 to 24 AWG | Up to 250V | Through hole, SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.00mm | Up to 2.0A | 28 to 22 AWG | Up to 250V | Through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.00mm | Up to 3.0A | 28 to 22 AWG | Up to 250V | Crimp or compression, through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.50mm | Up to 5.0A | 26 to 20 AWG | Up to 250V | Through hole, SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.50, 5.00mm | Up to 16.0A | 24 to 16 AWG | Up to 250V | Insulation displacement termination (IDT), through hole, SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.50, 3.30, 4.50, 6.50mm | Up to 12.5A | 28 to 16 AWG | Up to 600V | Through hole |

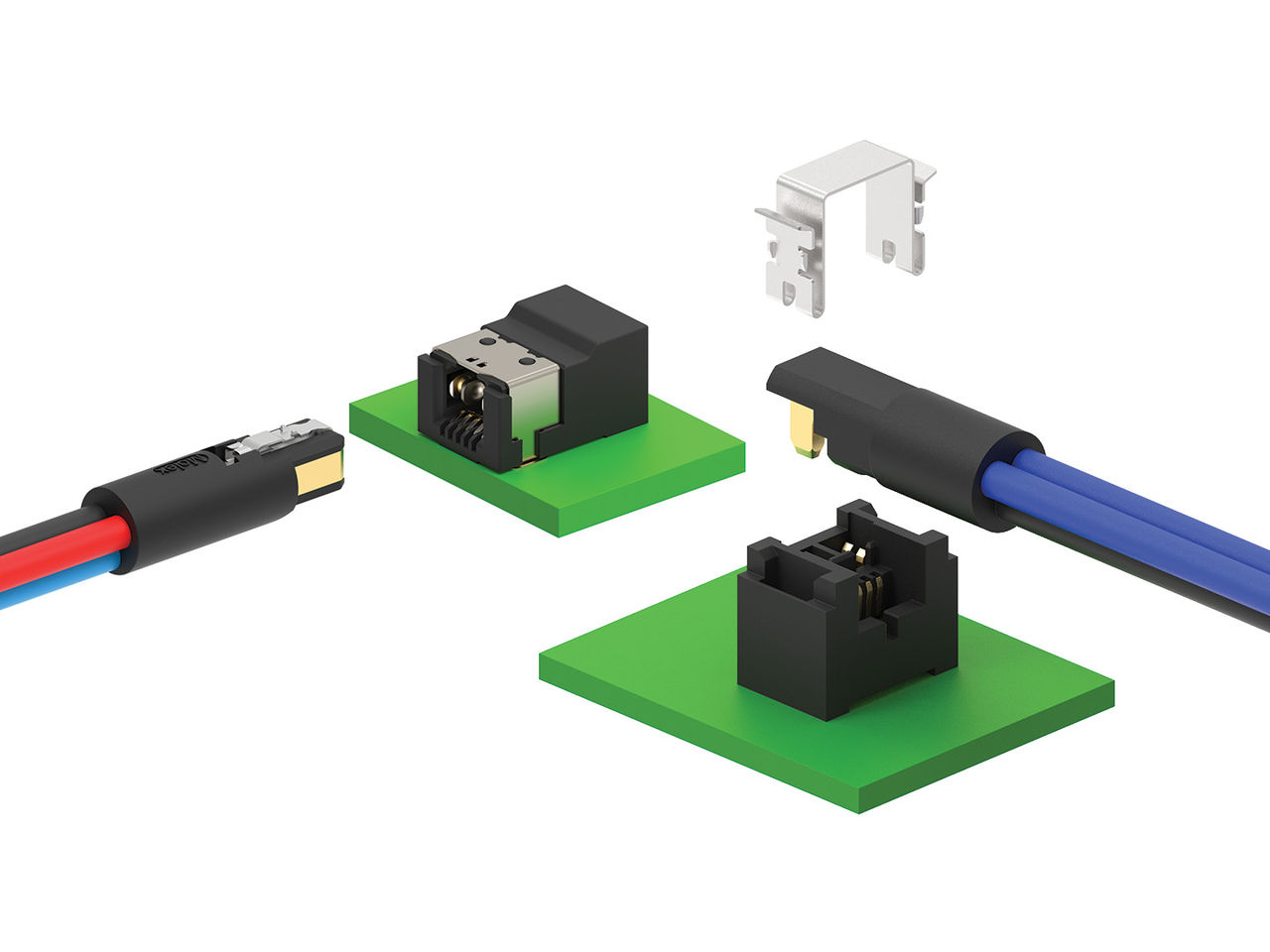

Pro Wire-to-Board Connectors
Designed for advanced applications, these connectors feature a low profile, high current density and integrated independent secondary locking (ISL) for secure and reliable connections.

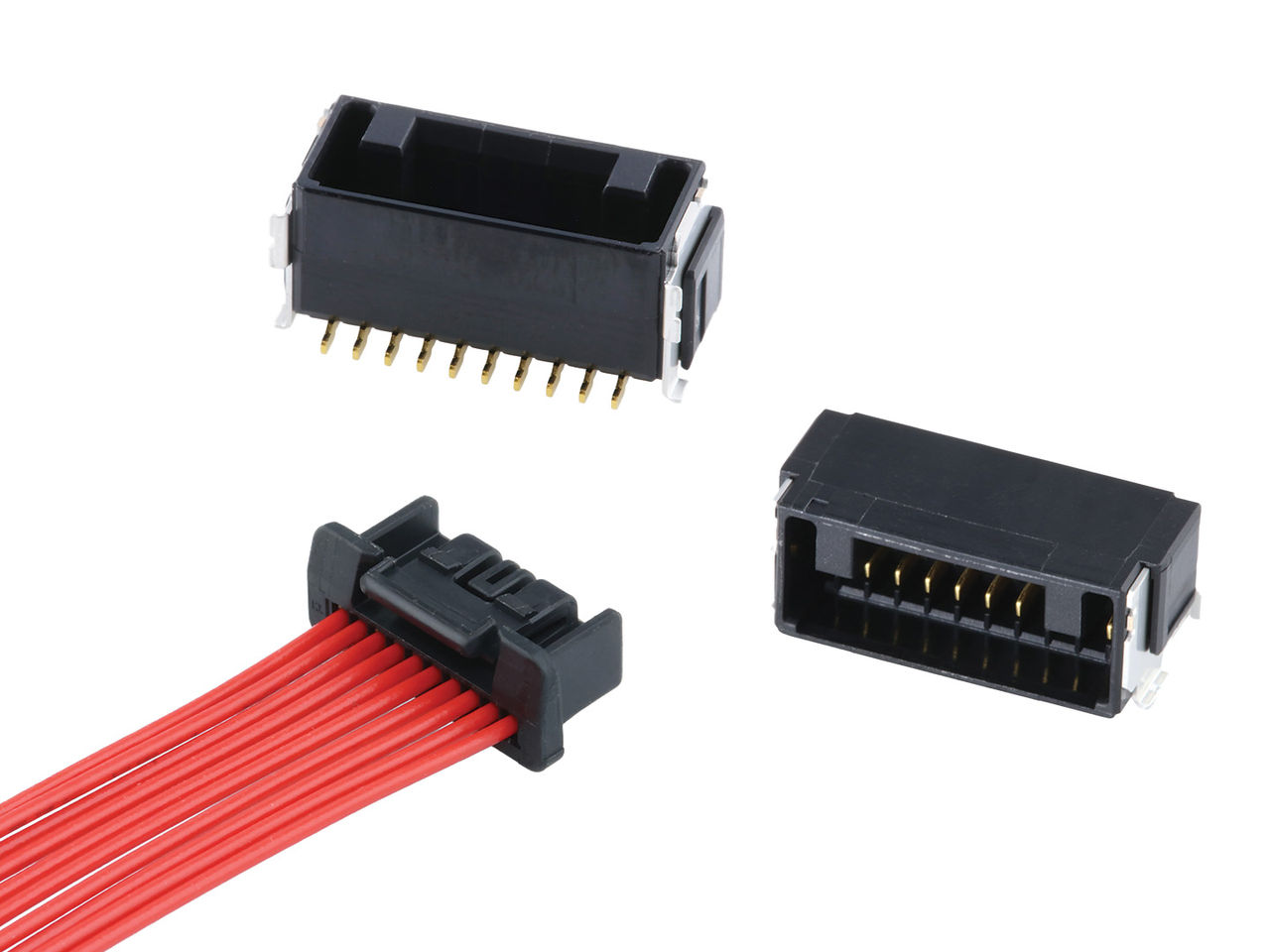

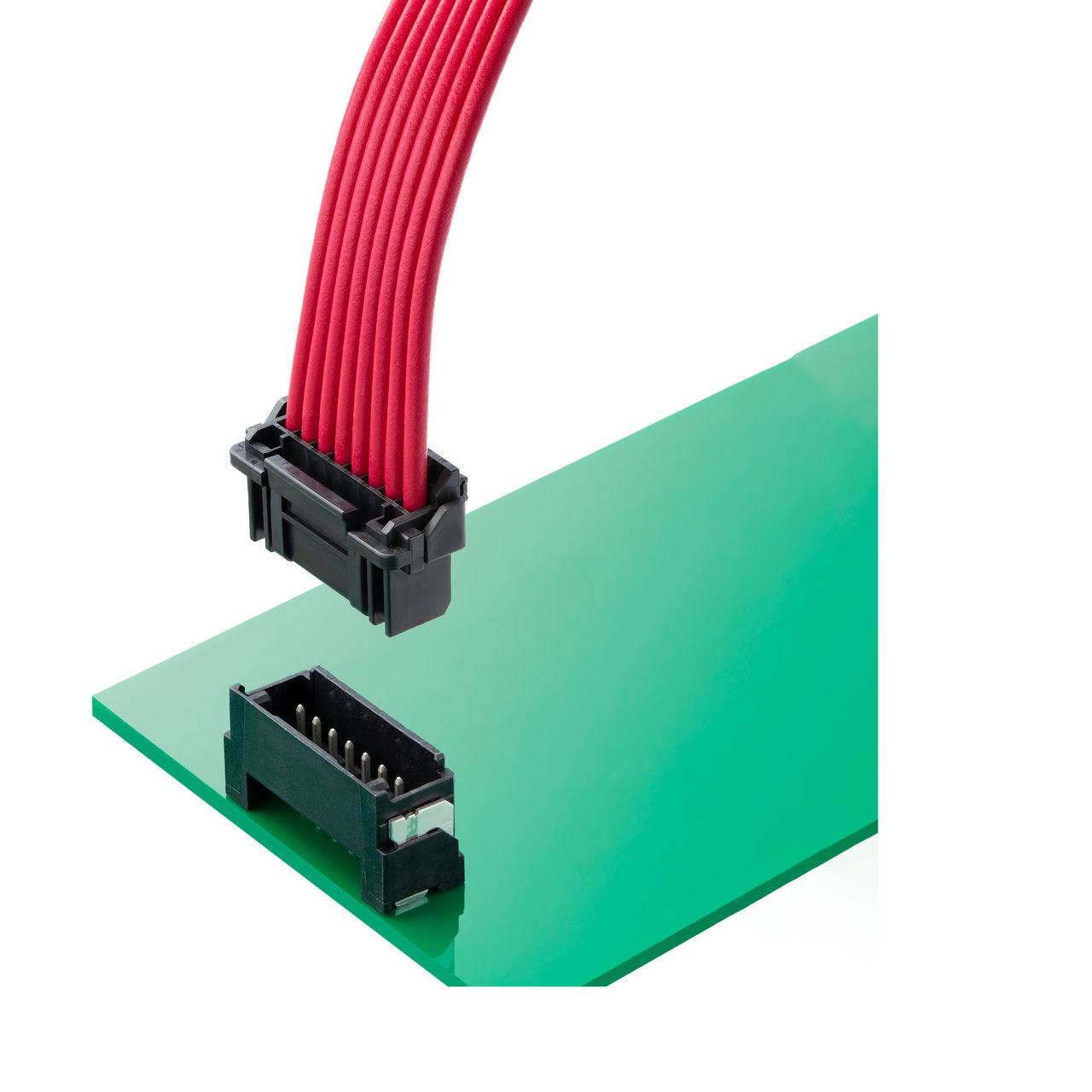

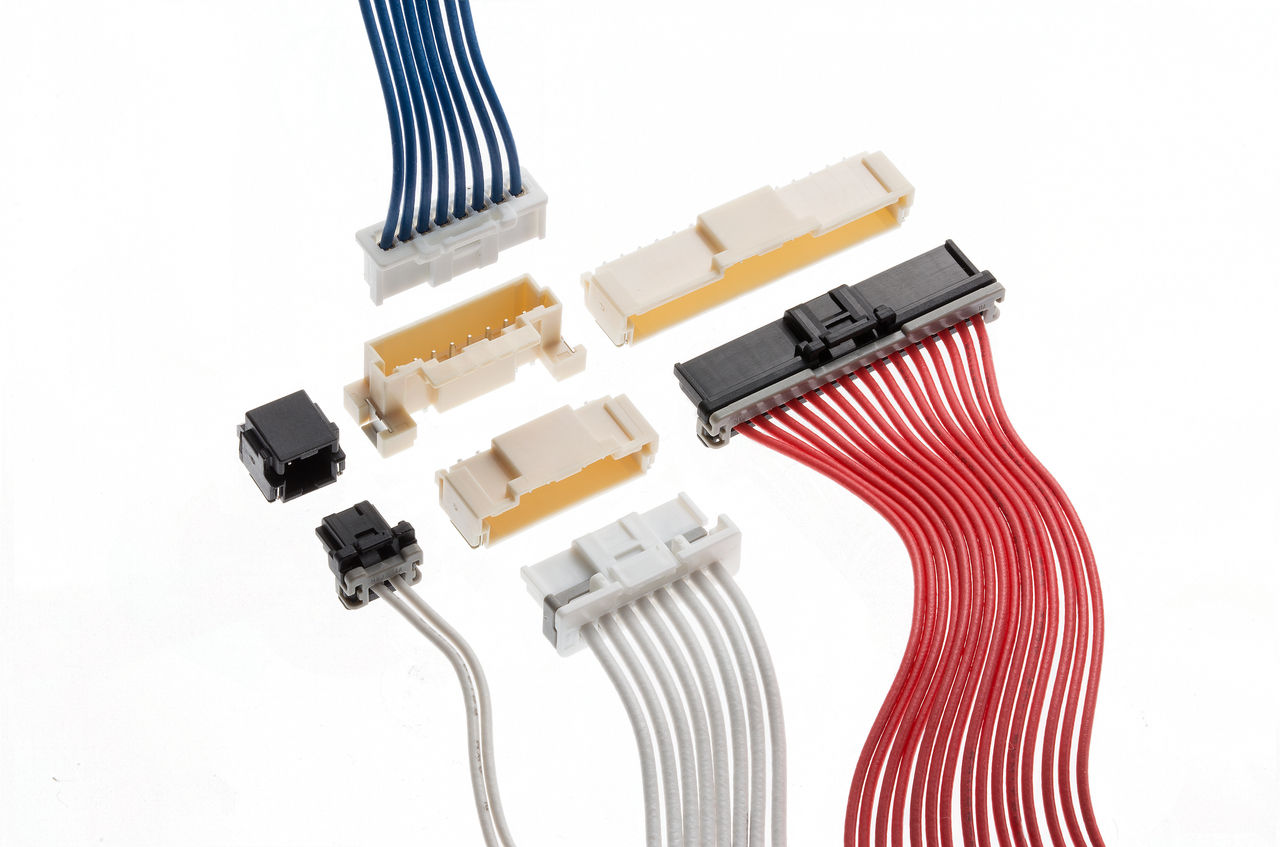

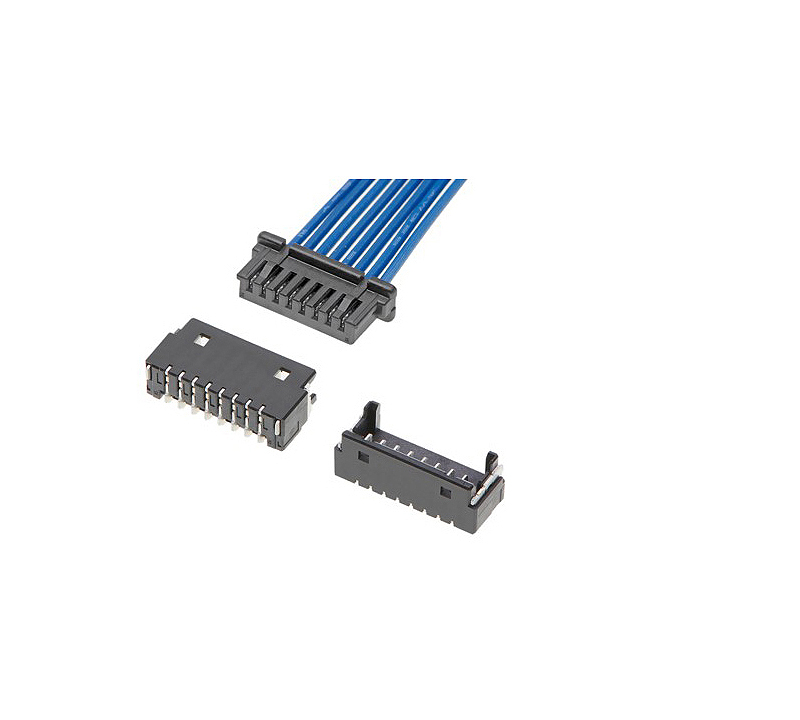

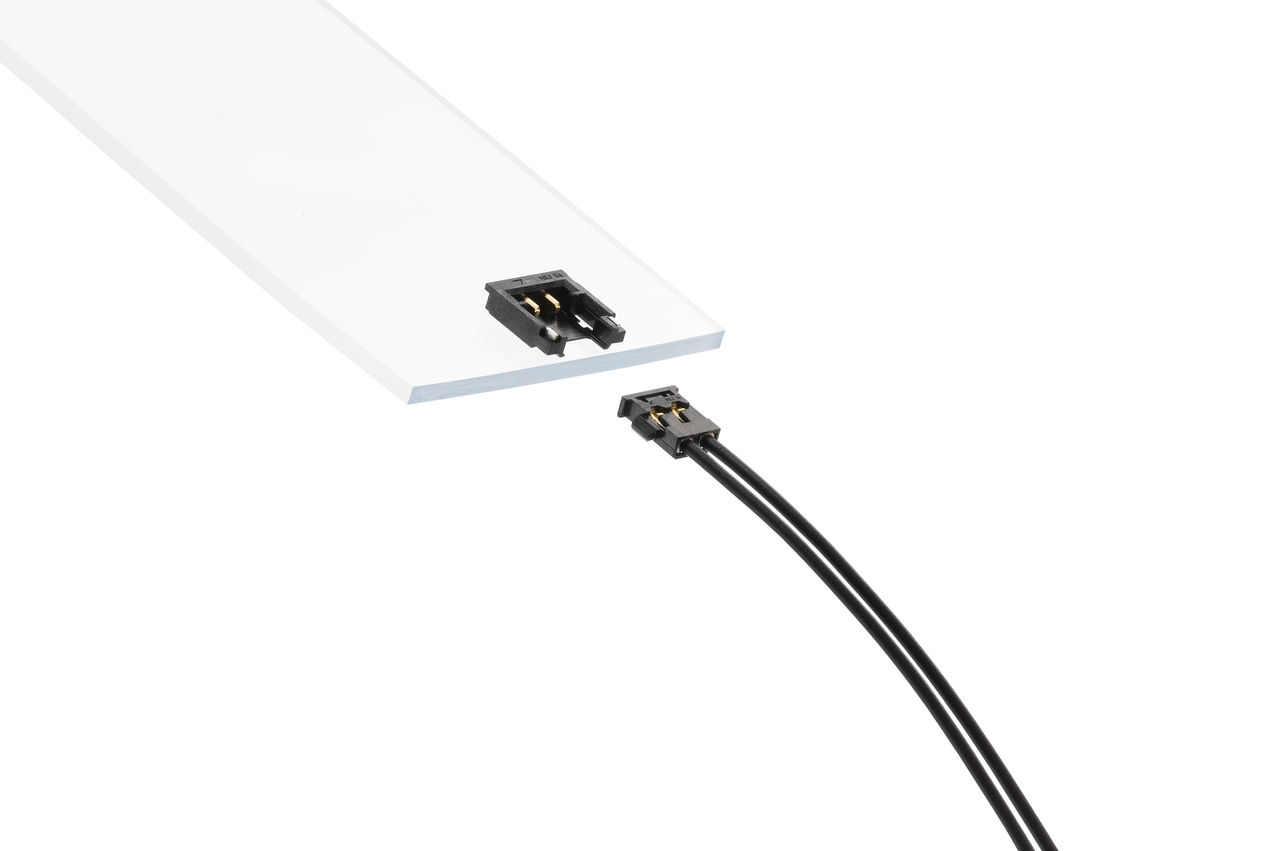

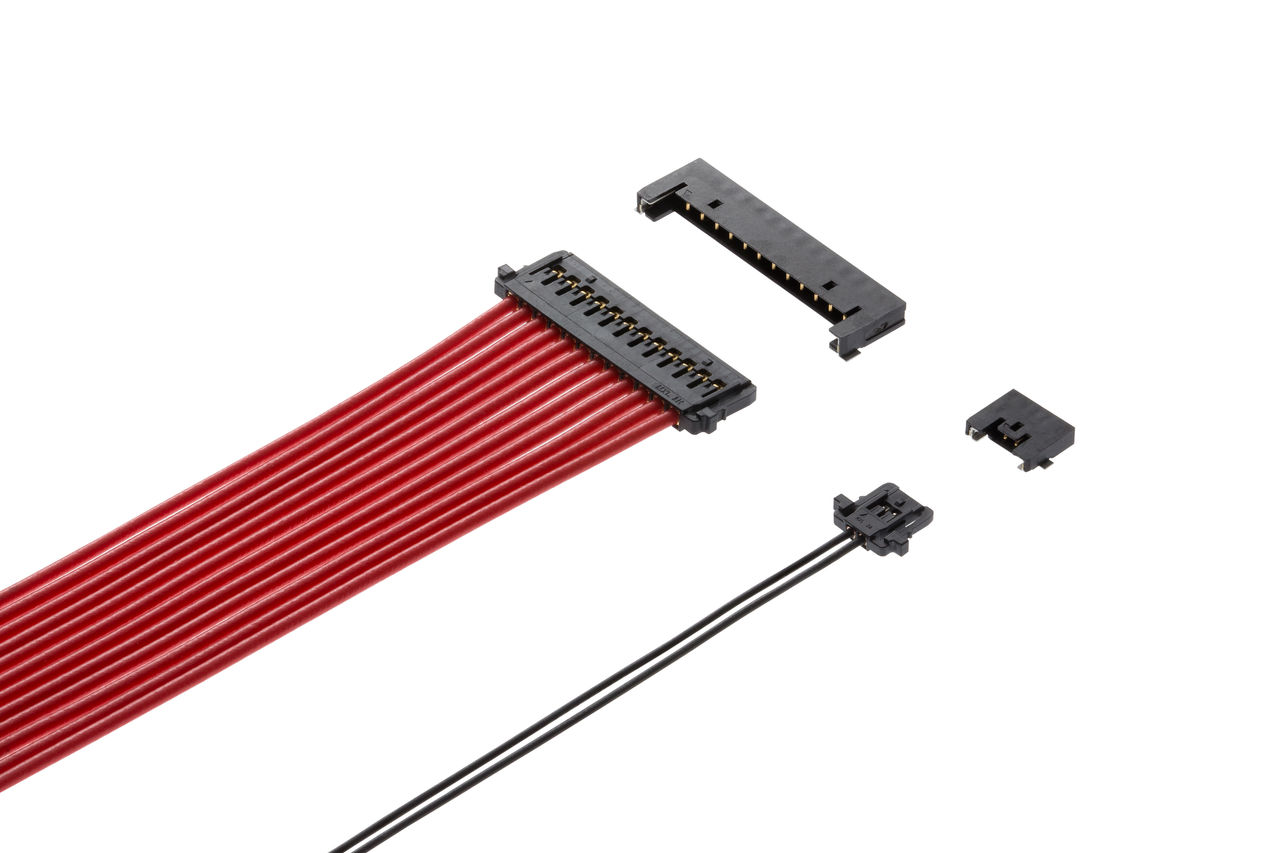

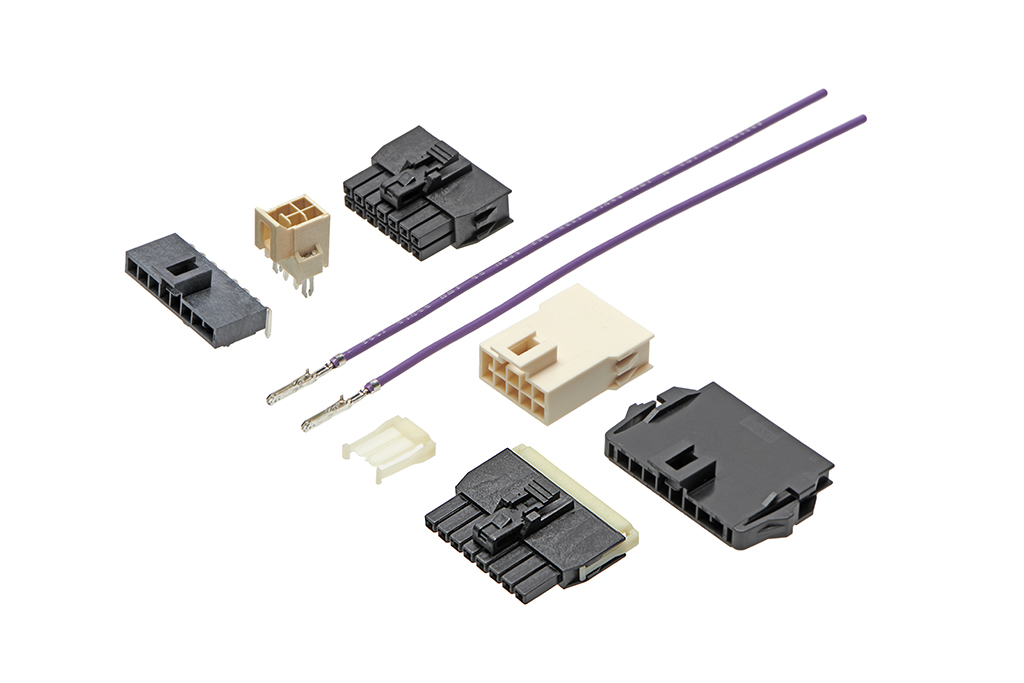

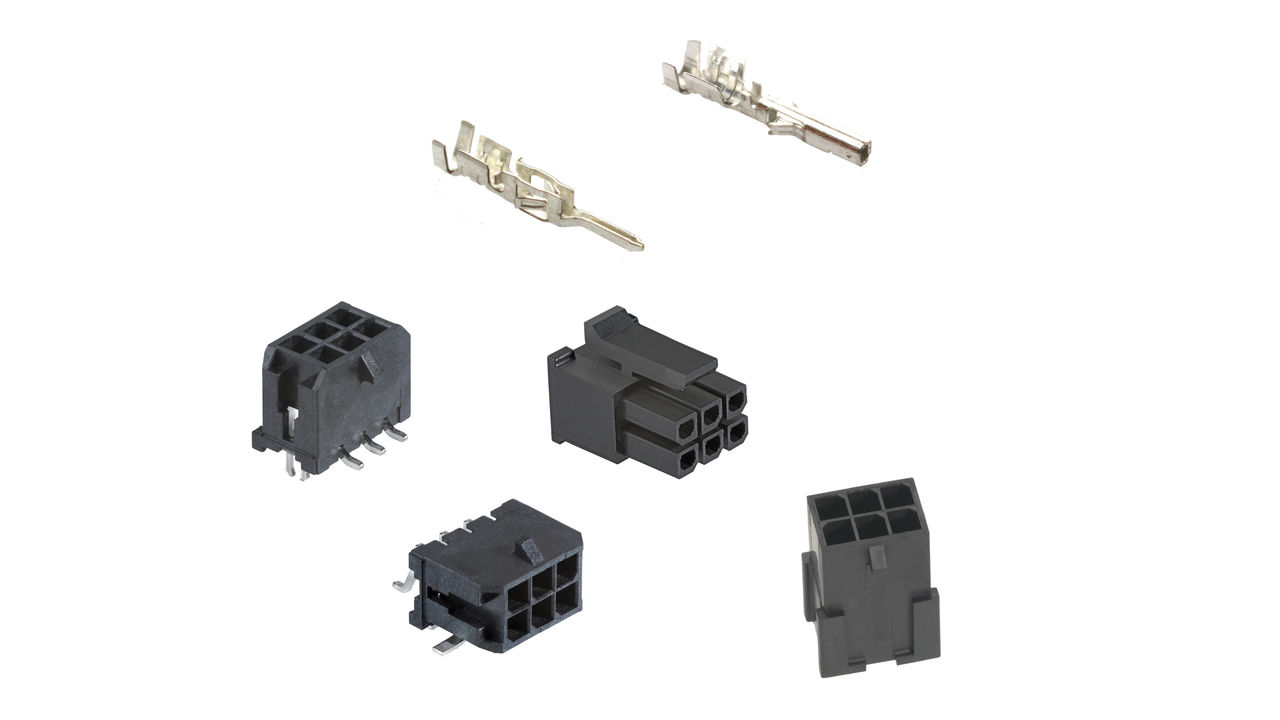

| Configurations | Current | Data Rate | Routing Profile |
|---|---|---|---|
| Right angle and vertical | Up to 15.0A | Up to 1Gbps Ethernet | 5.65mm |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 0.80mm | Up to 1.0A | 32 to 28 AWG | Up to 30V | SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 1.00mm | Up to 2.5A | 32 to 28 AWG | Up to 100V | SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.00mm | Up to 3.3A | 30 to 22 AWG | Up to 250V | SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 1.00, 1.20, 1.80mm | Up to 5.0A | 30 to 28 AWG | Up to 50V | SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 1.00, 1.50, 2.00, 3.00mm | Up to 10.0A | 32 to 16 AWG | Up to 250V | SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.00mm | Up to 4.0A | 28 to 22 AWG | Up to 250V | SMT, Through Hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.50mm | Up to 8.0A | 26 to 20 AWG | Up to 250V | Through hole, SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|

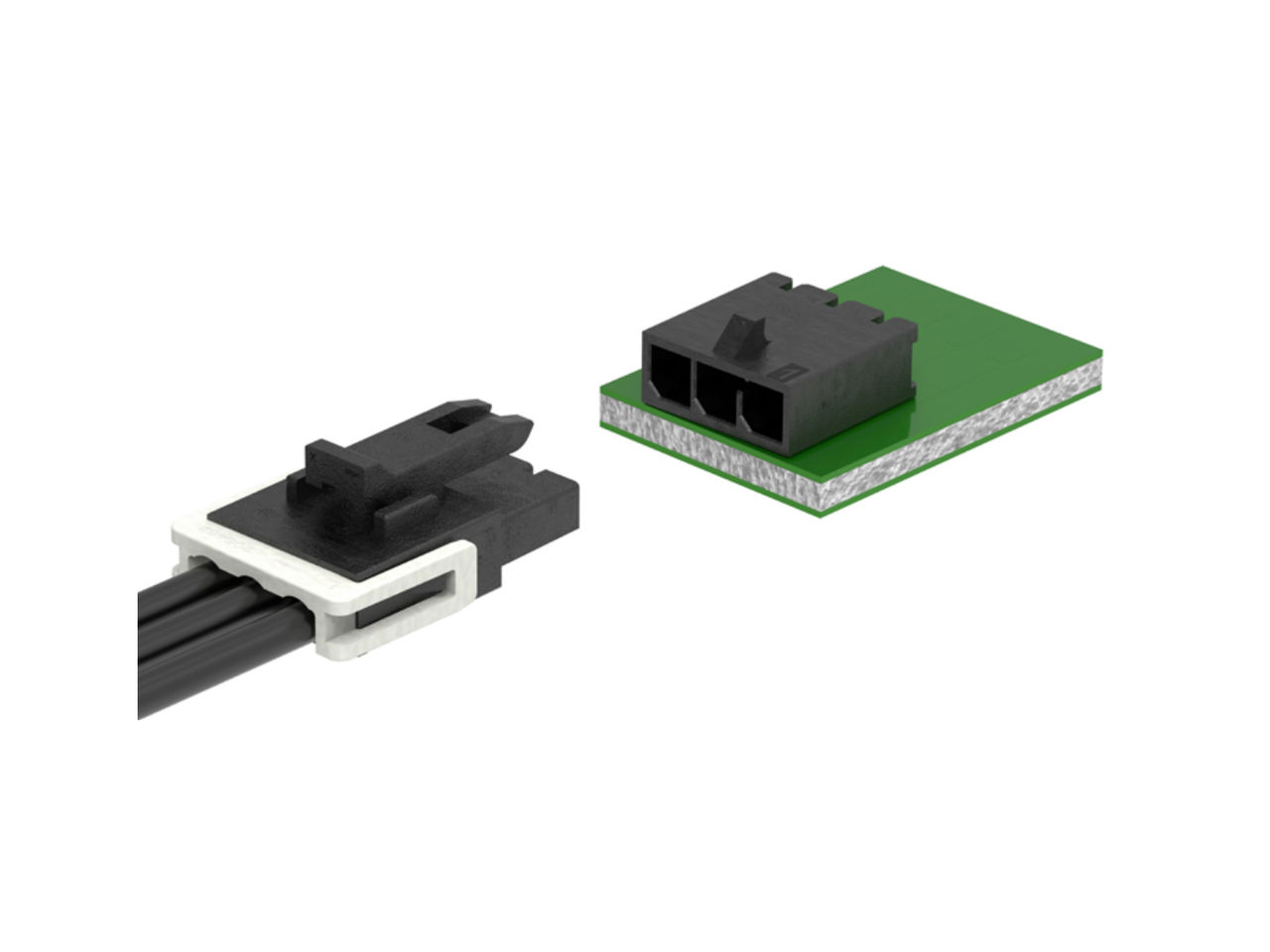

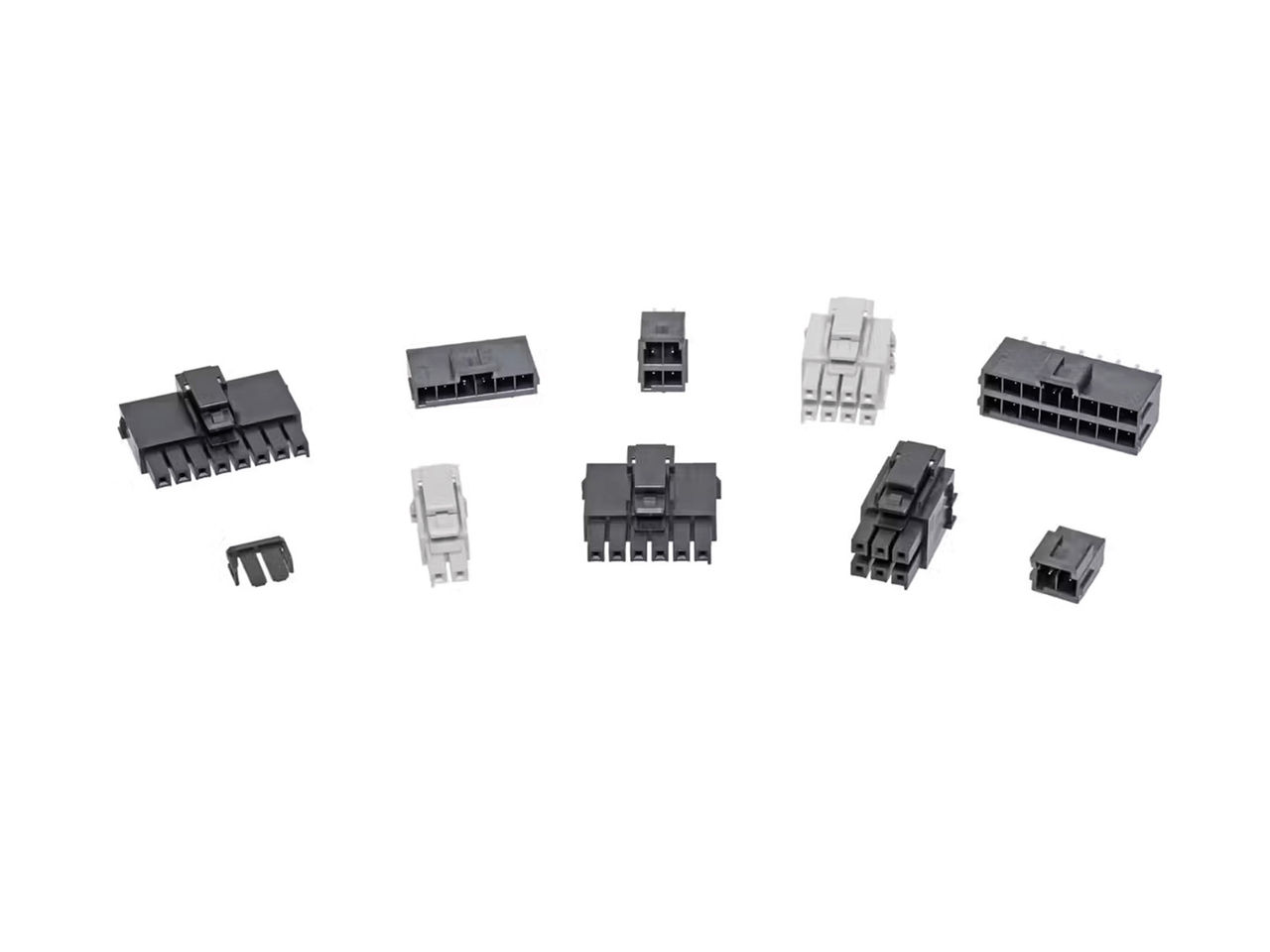

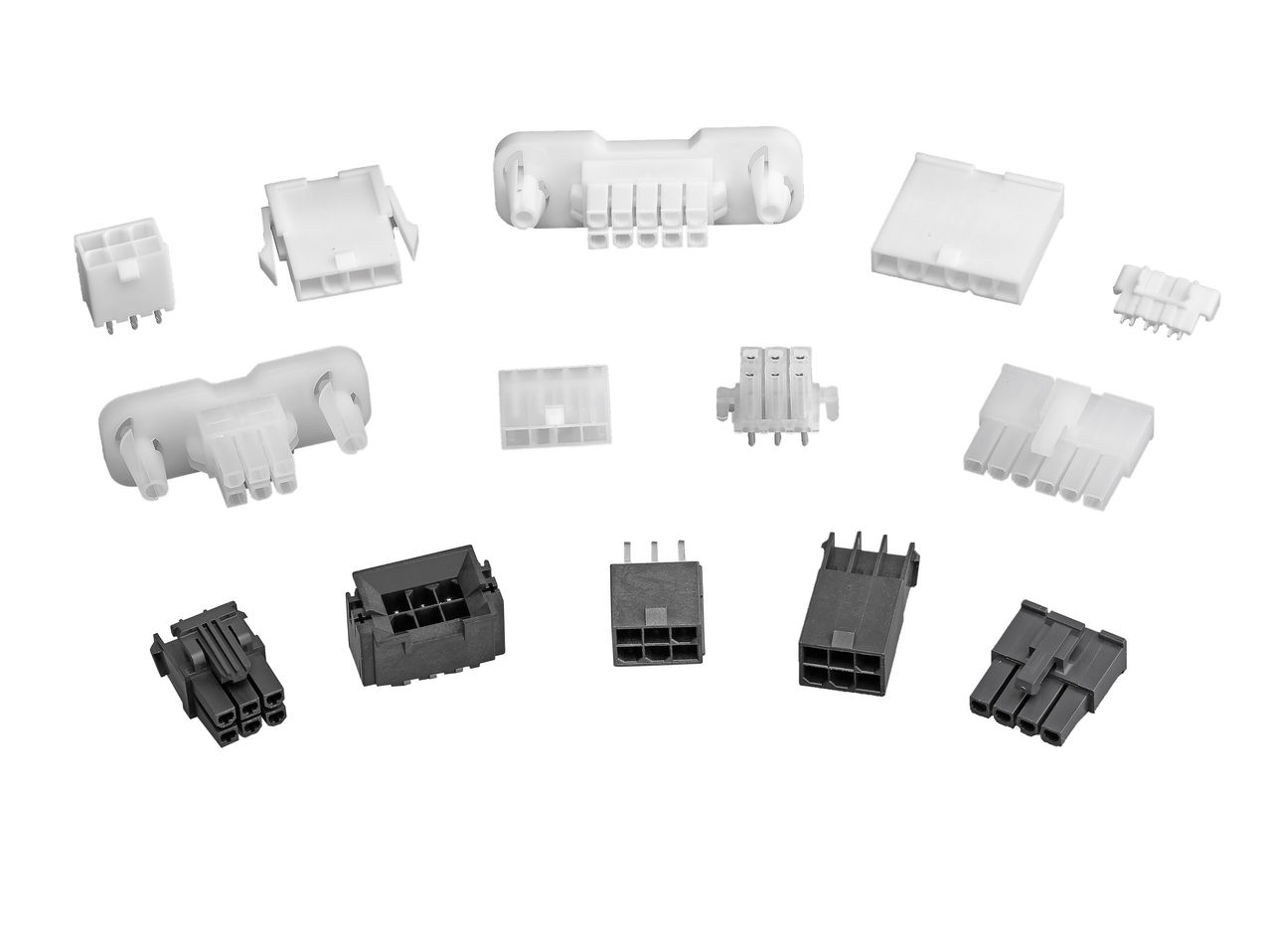

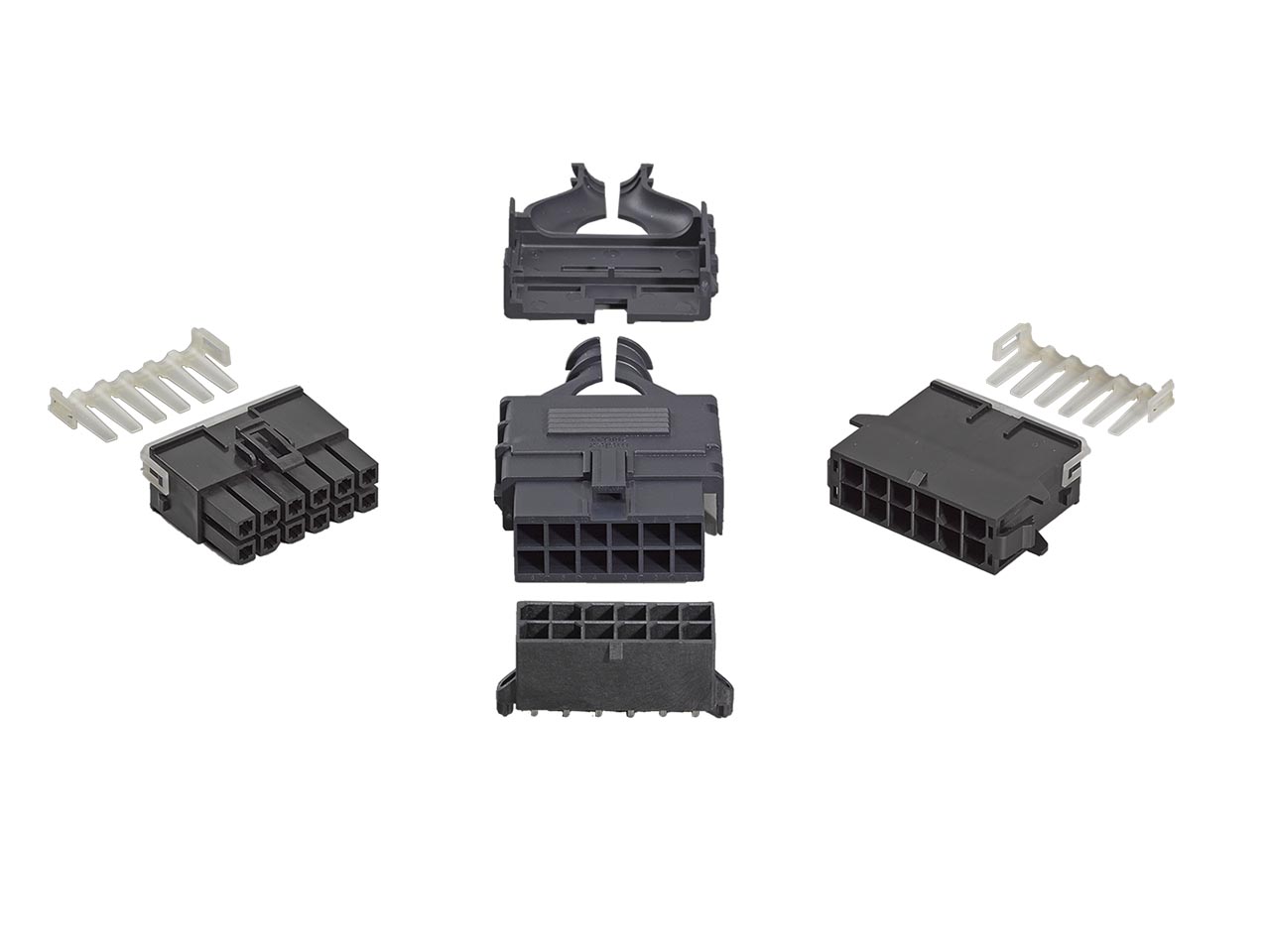

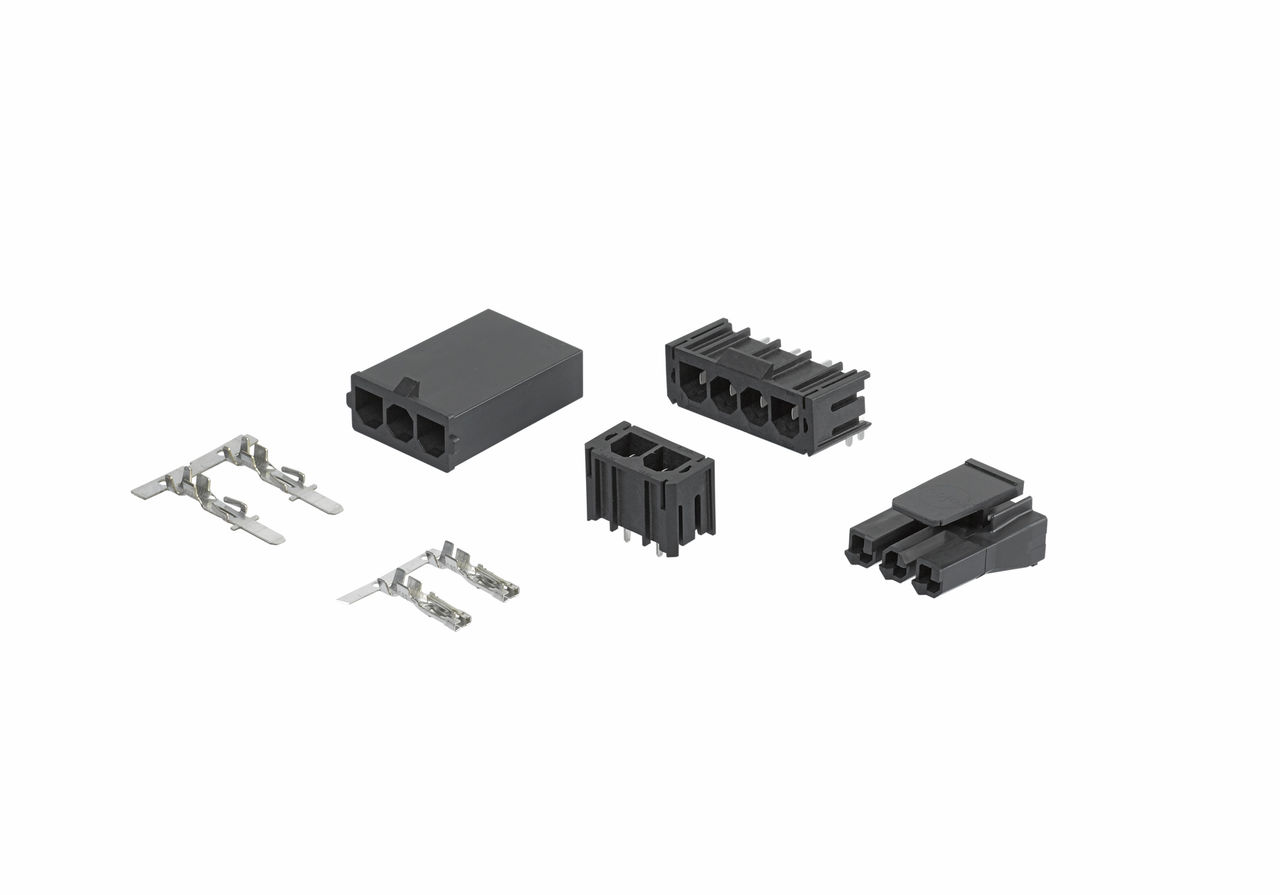

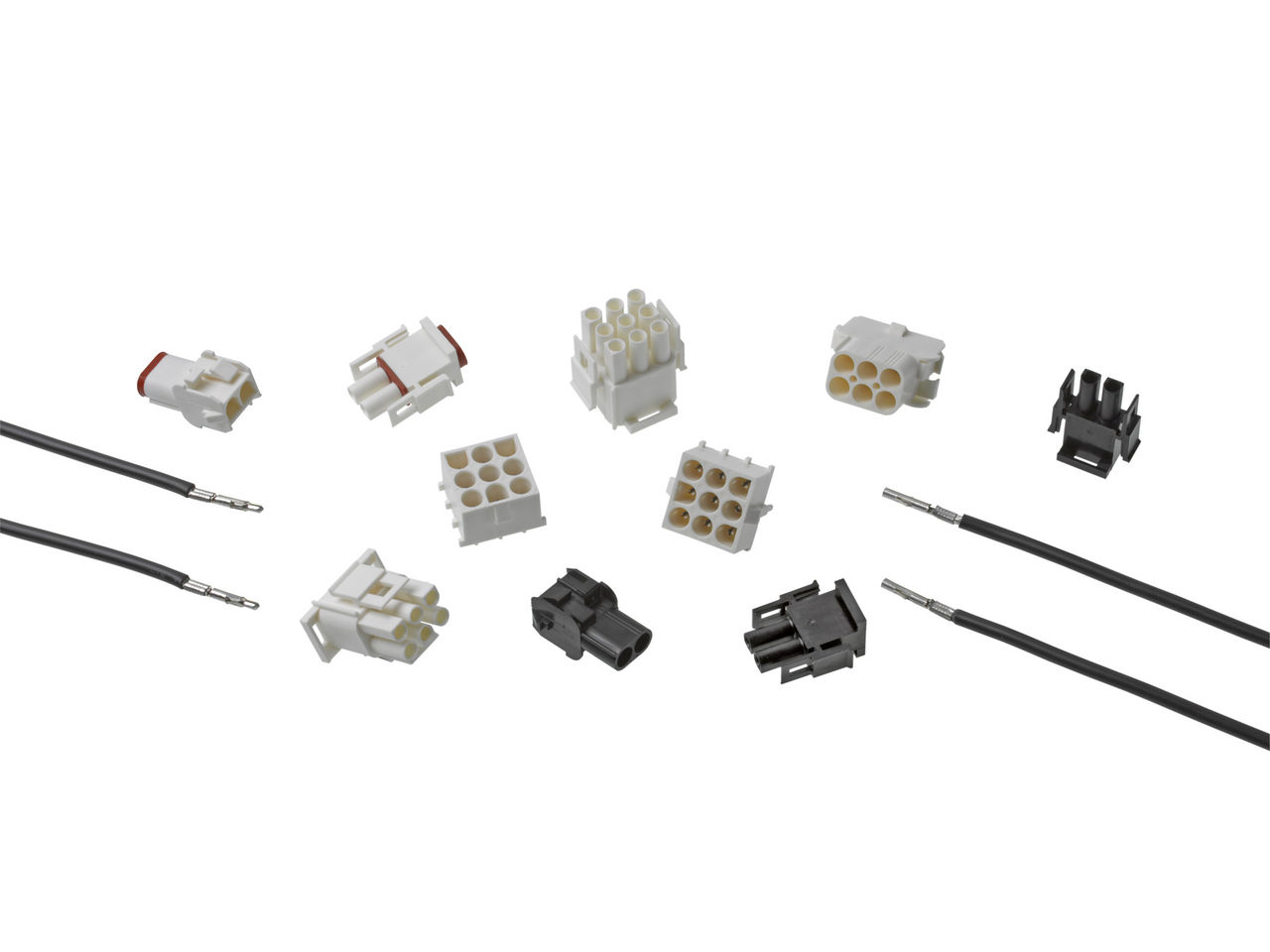

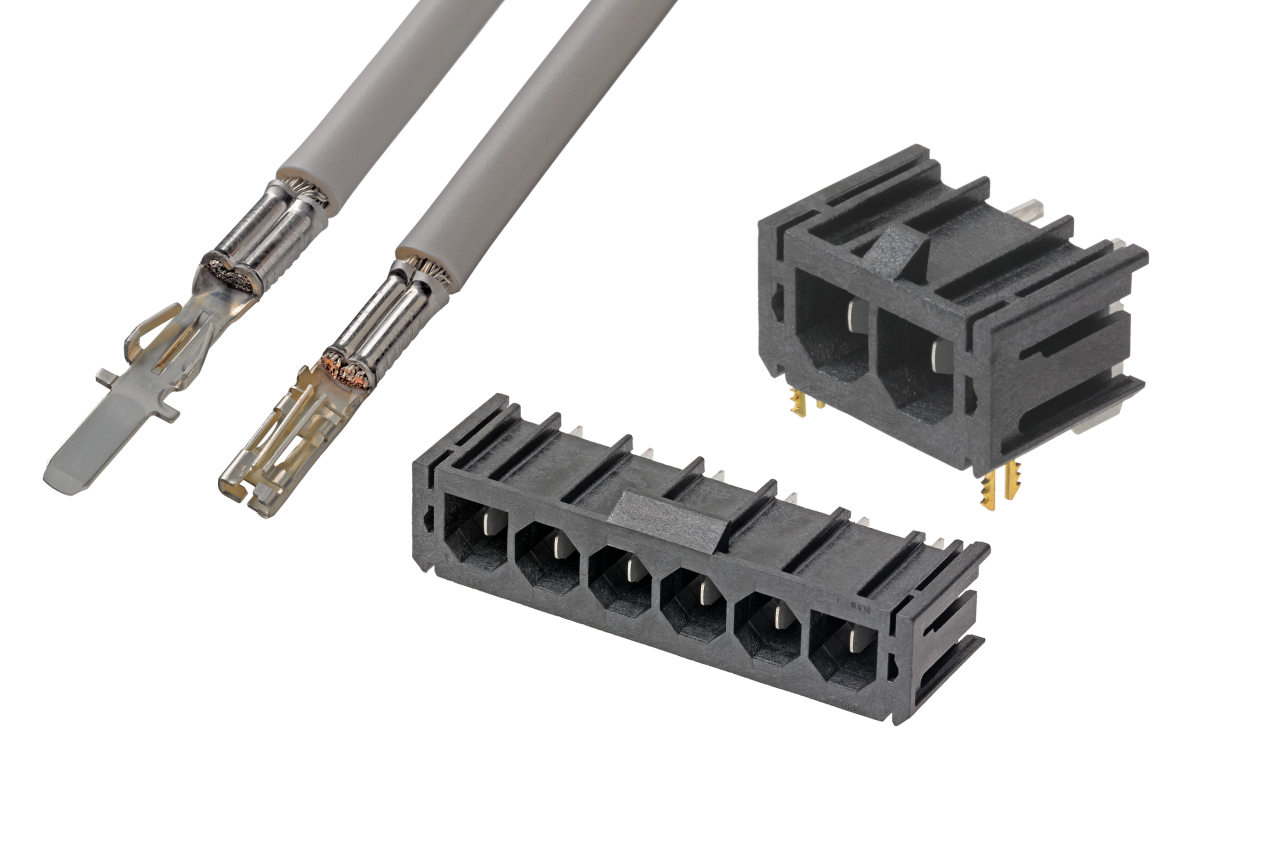

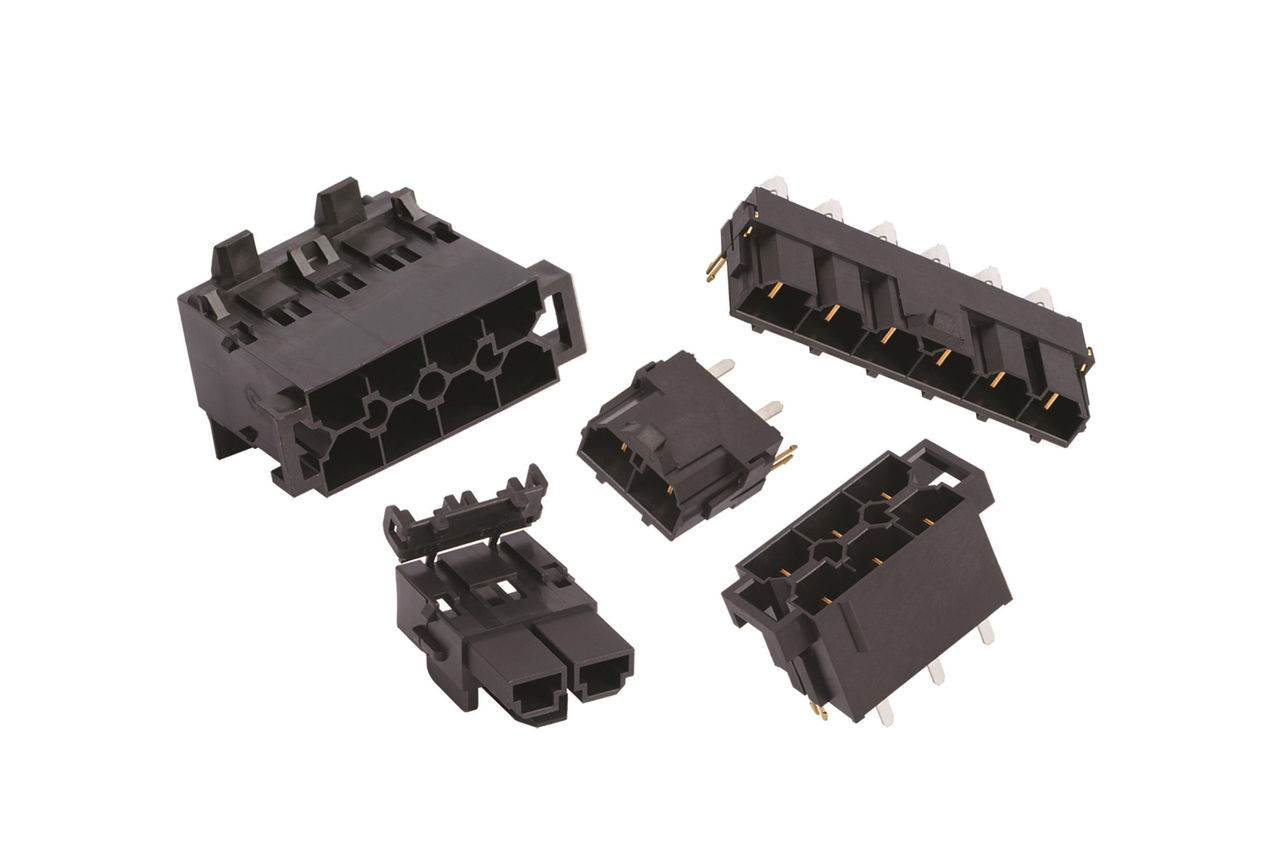

| 3.00mm | Up to 10.5A | 30 to 18 AWG | Up to 600V | Through hole, SMT, solder or weld |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 3.00mm | Up to 13.0A | 30 to 16 AWG | Up to 600V | Through hole, SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 3.50mm | Up to 14.0A | 22 to 16 AWG | Up to 600V | Through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 4.20mm | Up to 20.5A | 28 to 14 AWG | Up to 600V | Through hole, SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 5.70mm | Up to 30.0A | 16 to 10 AWG | Up to 600V | Through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 6.35mm | Up to 20.0A | 24 to 14 AWG | Up to 600V | Through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 7.50mm | Up to 18.0A | 24 to 14 AWG | Up to 600V | Through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 7.50mm | Up to 34.0A | 12 to 10 AWG | Up to 600V | Through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 10.00mm | Up to 50.0A | 16 to 8 AWG | Up to 600V | Through hole |

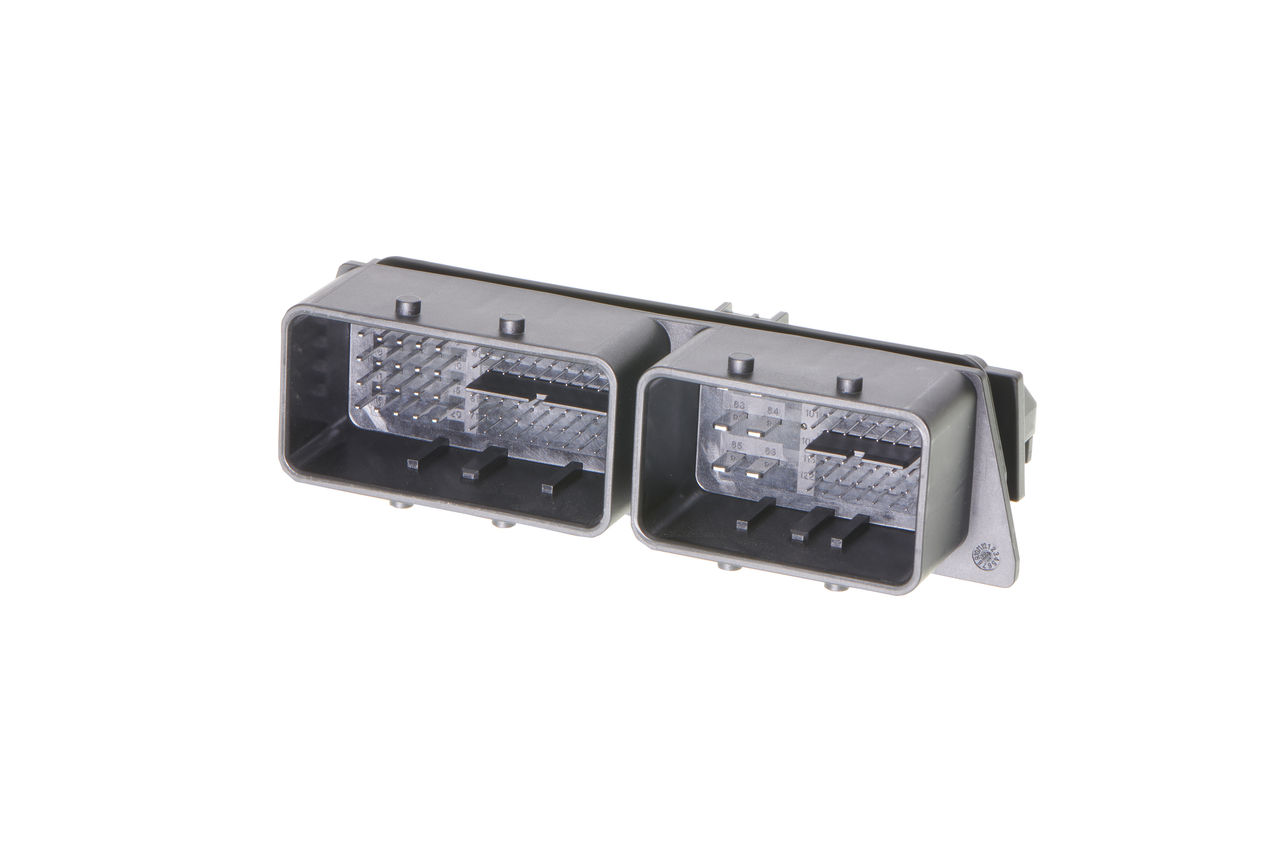

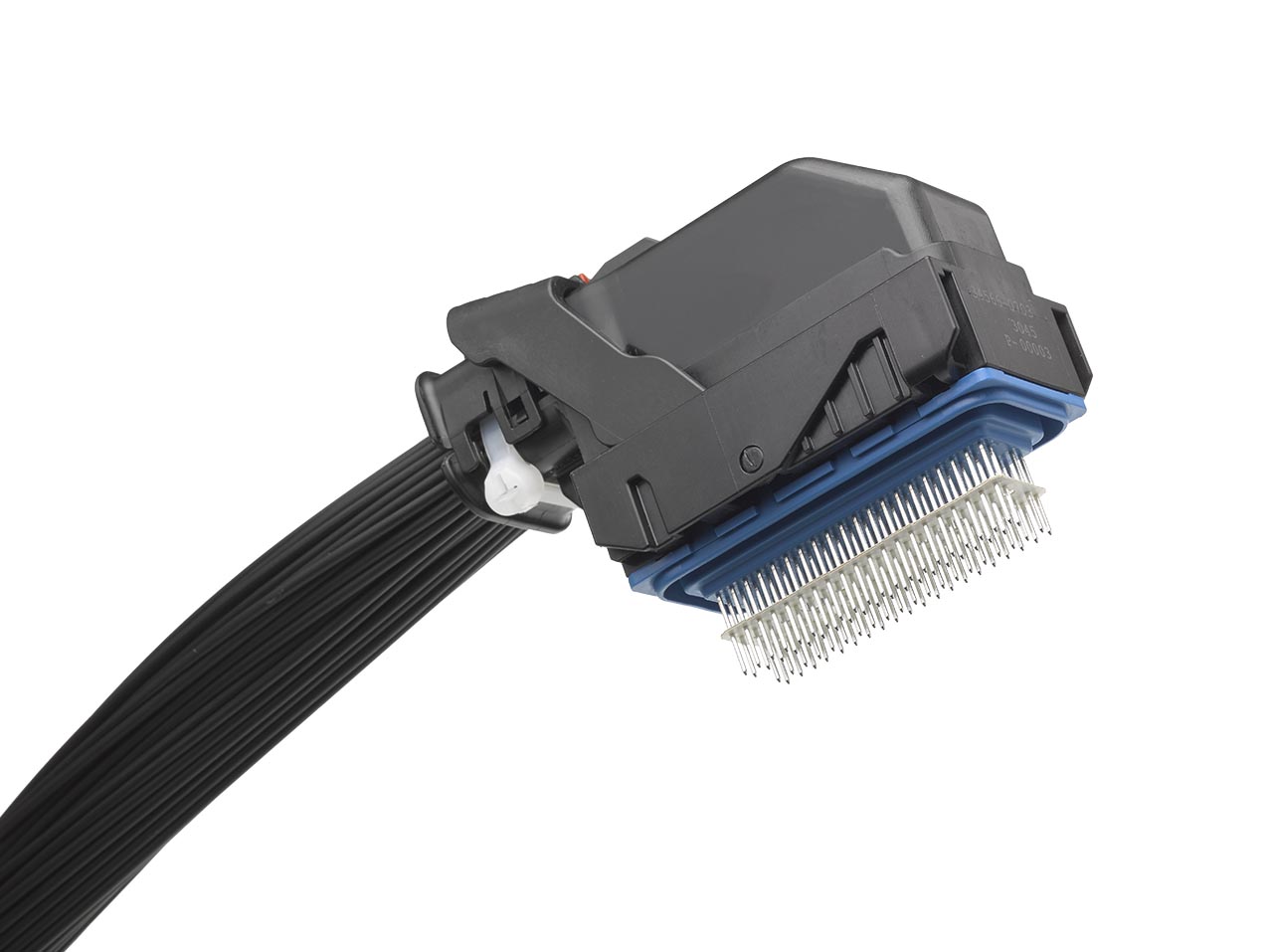

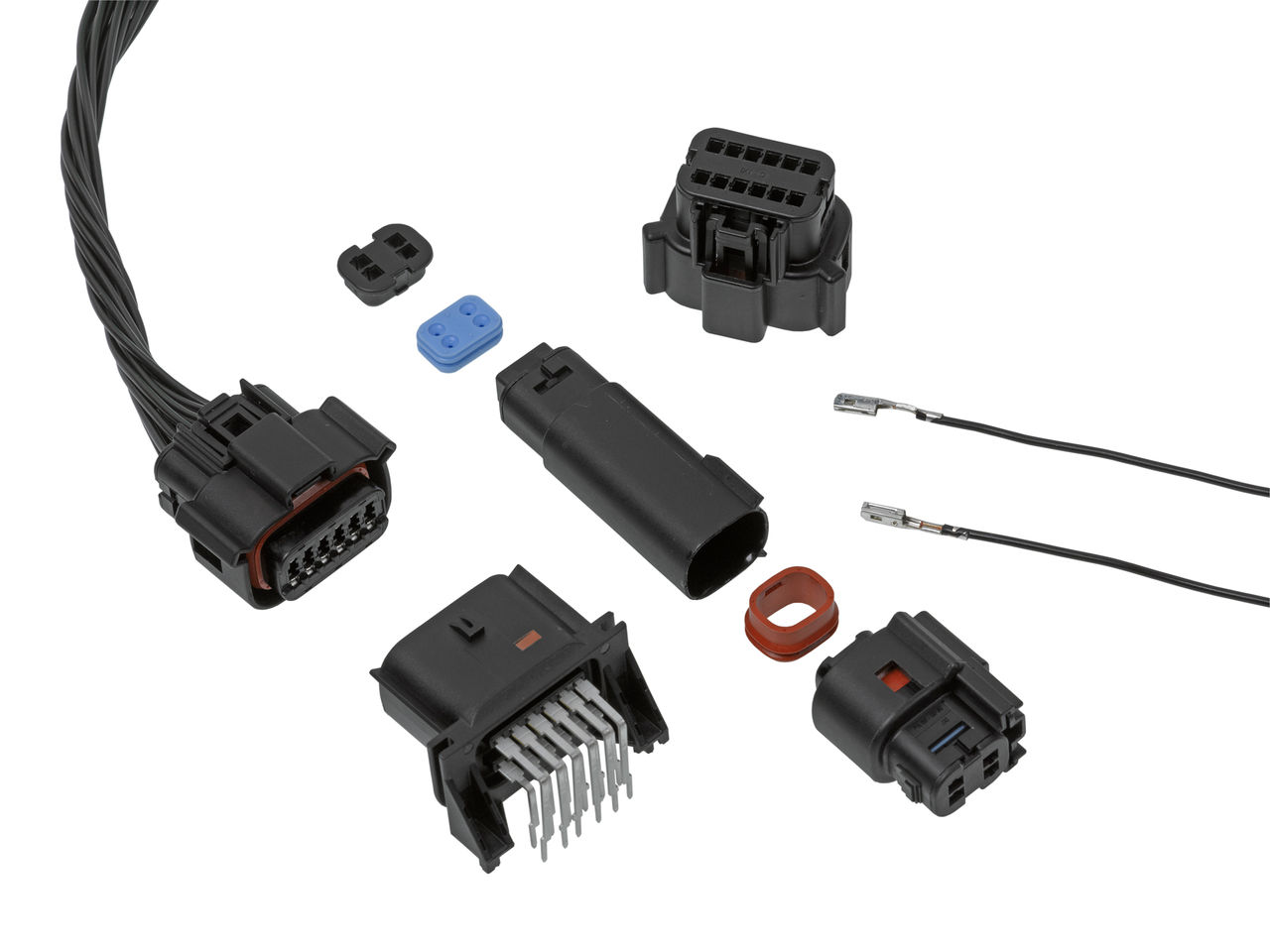

Sealed Wire-to-Board Connectors

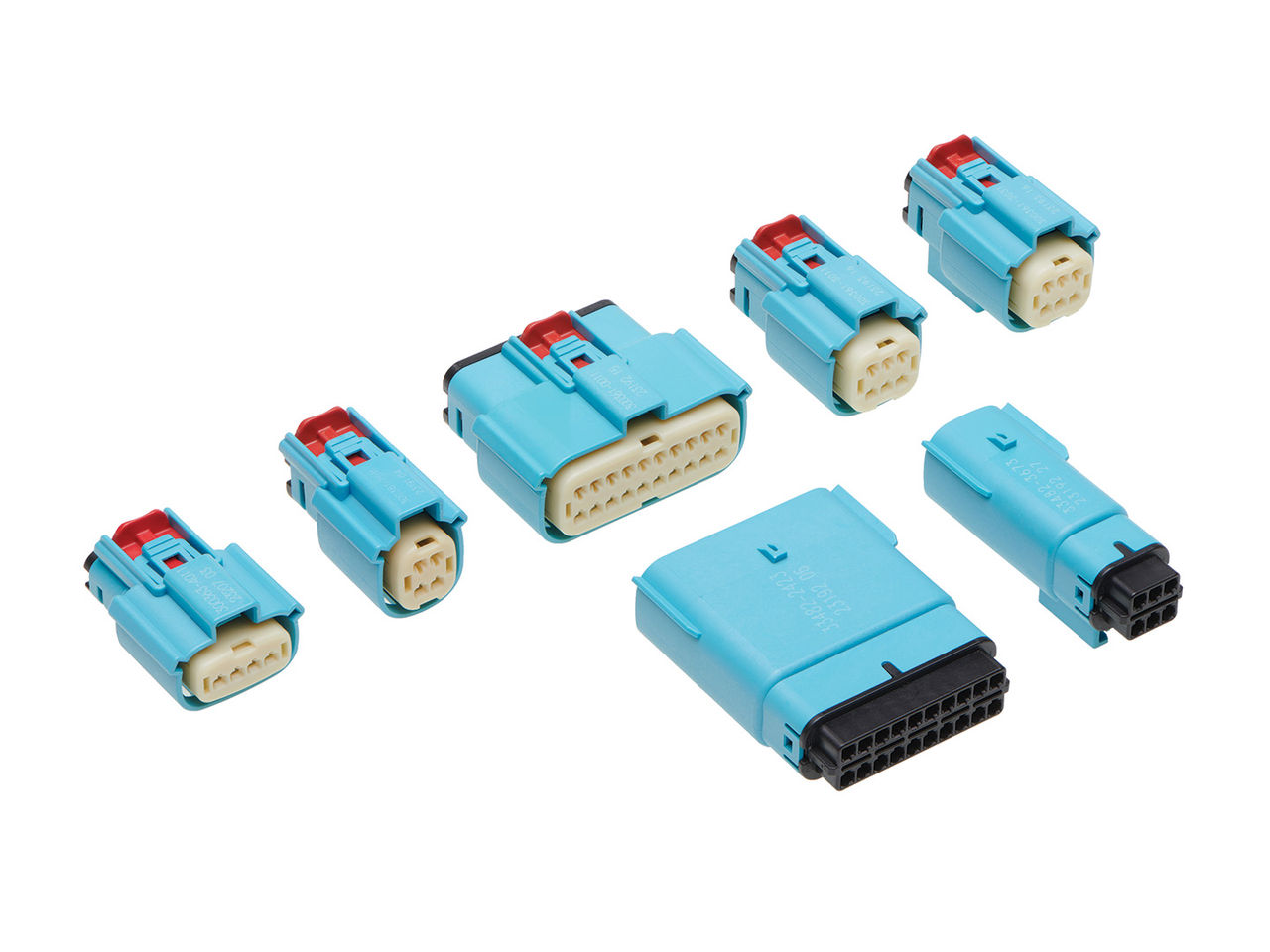

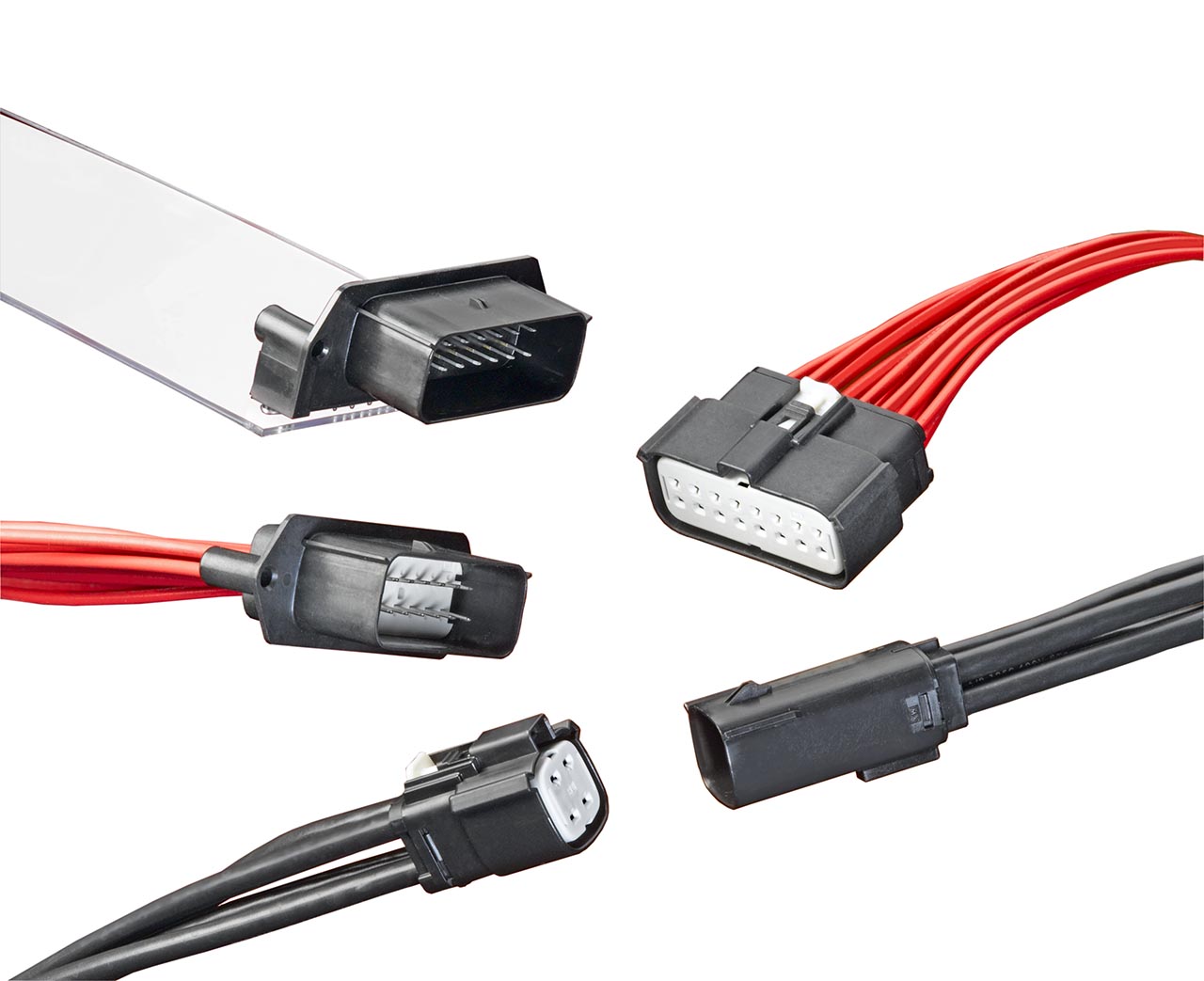

| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.40, 3.00, 5.00mm | Up to 15.0A | 0.30 to 1.25 or 2.00 to 2.50mm² | Up to 250V | Crimp or compression, SMT |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 2.00, 3.50, 3.70mm | Up to 21.0A | 20 to 10 AWG | Up to 14V | Solder, weld |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 1.50, 3.00, 3.50, 4.50, 5.00mm | Up to 22.0A | 22 to 14 AWG | Up to 500V | Through hole, SMT |
| IP Rating | Current | Specifications | Wire Gage | Termination Style |
|---|---|---|---|---|
| IP67, IP68 and IP69K | 11.0A, 25.0A | GMW3191 | 22 to 18 AWG | Through-hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 3.20mm | Up to 10.0A | 22 to 16 AWG | Up to 28V | Through hole |
| Pitch | Current | Wire Gauge | Voltage | Termination Style |
|---|---|---|---|---|
| 5.84, 7.62mm | Up to 40.0A | 22 to 8 AWG | Up to 600V | Crimp, through hole |

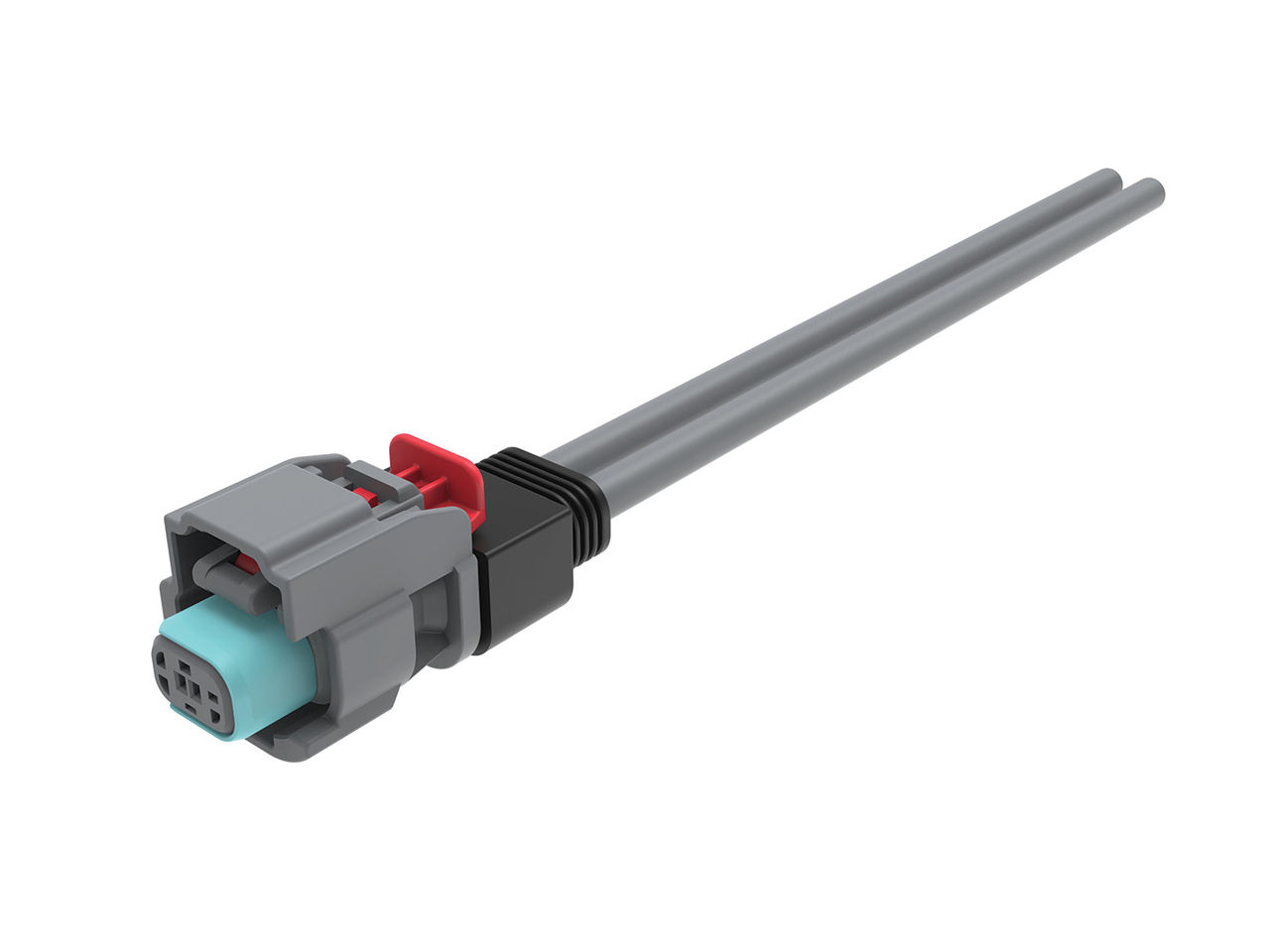

| Protocols | Nodes | Cable | Topology |
|---|---|---|---|
| 10BASE-T1S, 100BASE-T1, 1000BASE-T1 | Up to 8 | 28 to 22 AWG | Multi-drop Ethernet |

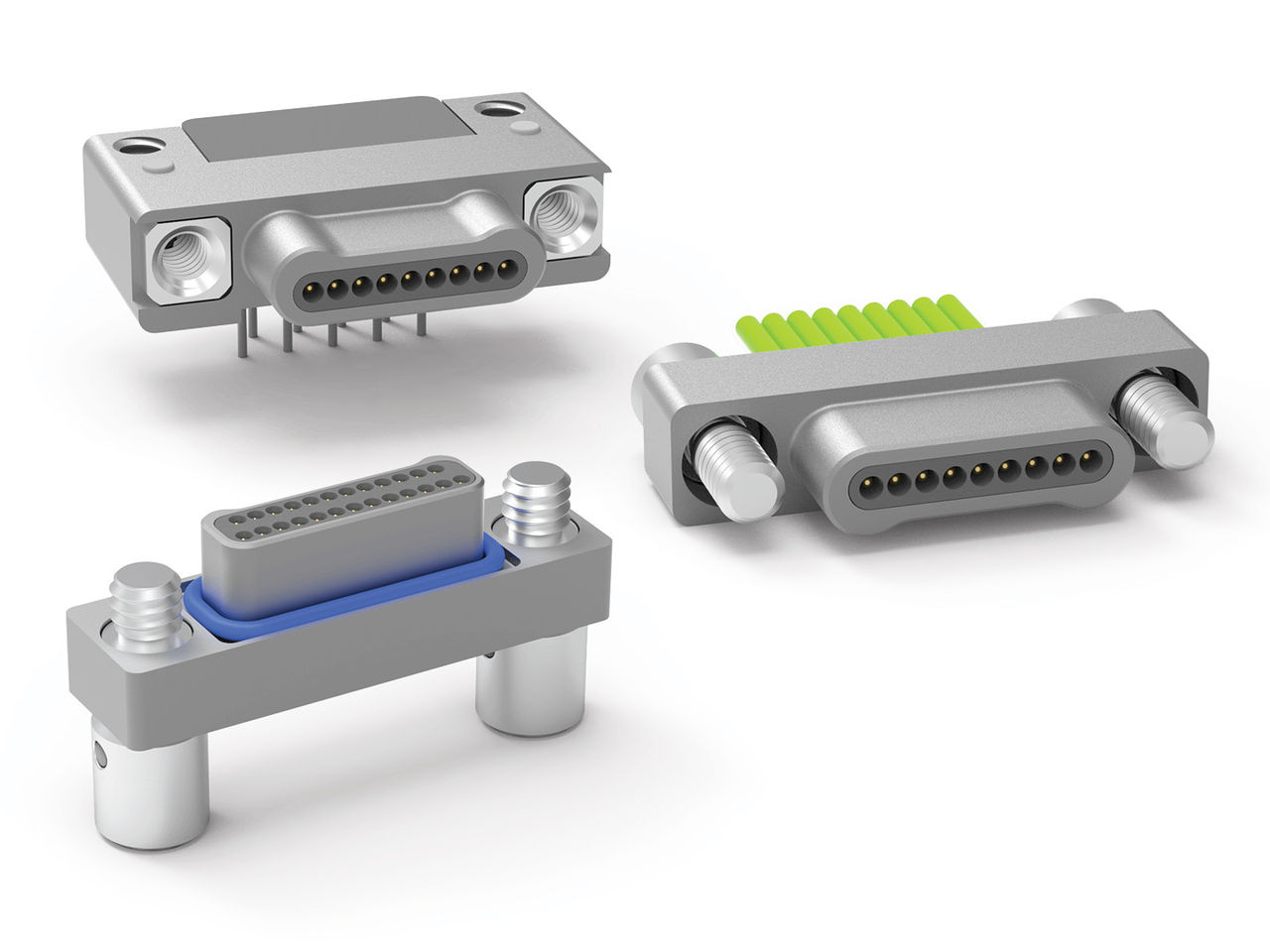

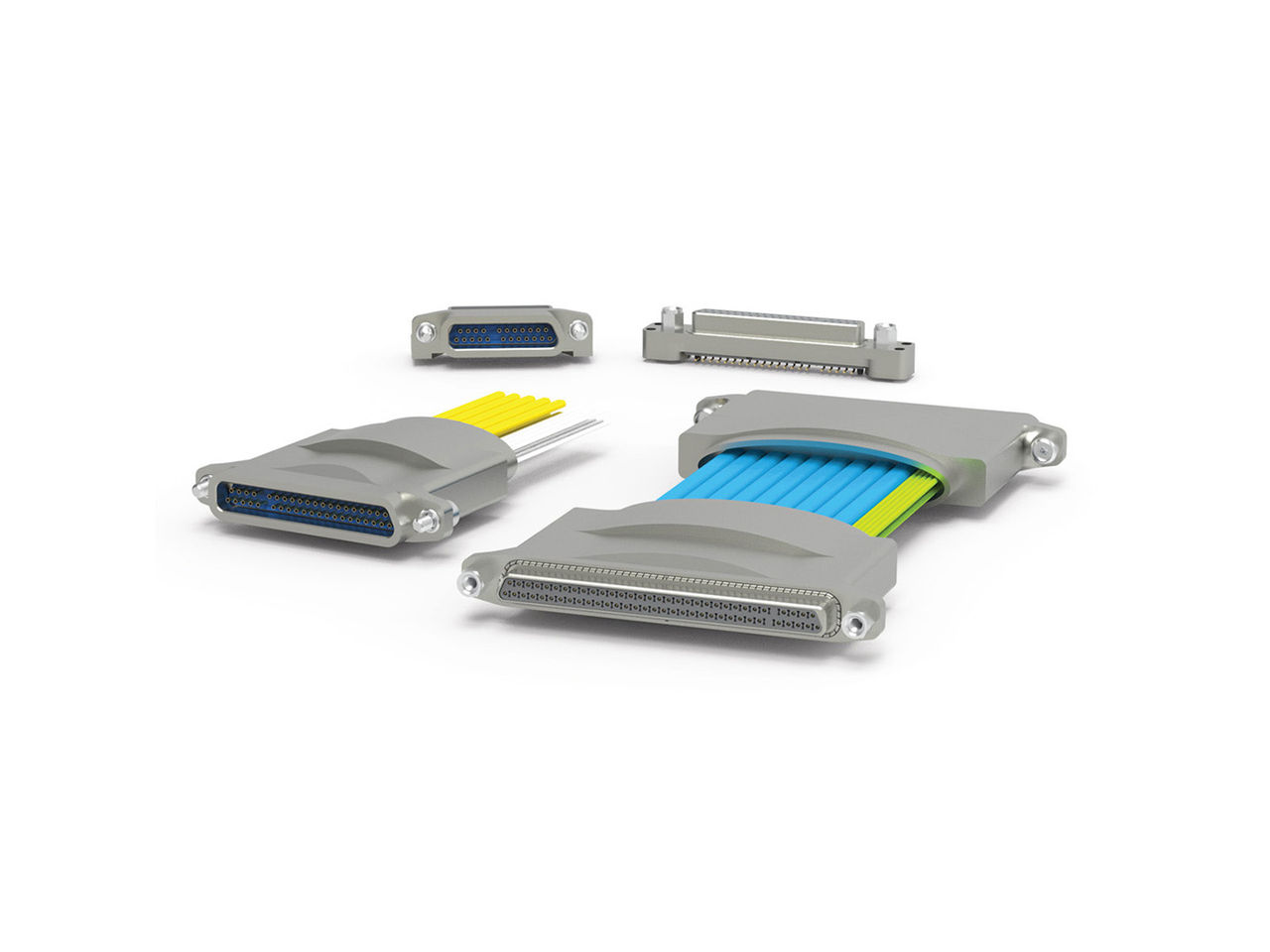

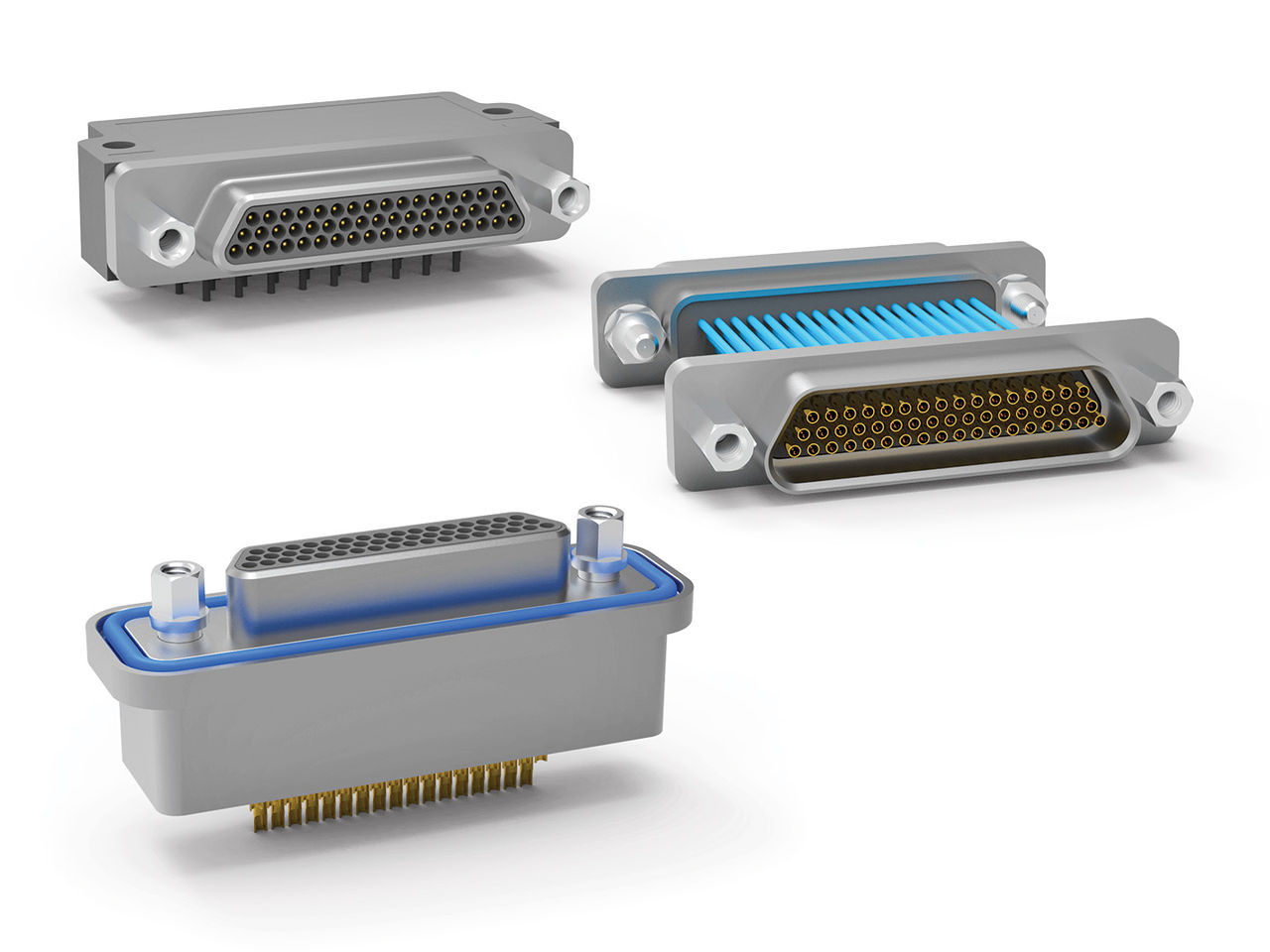

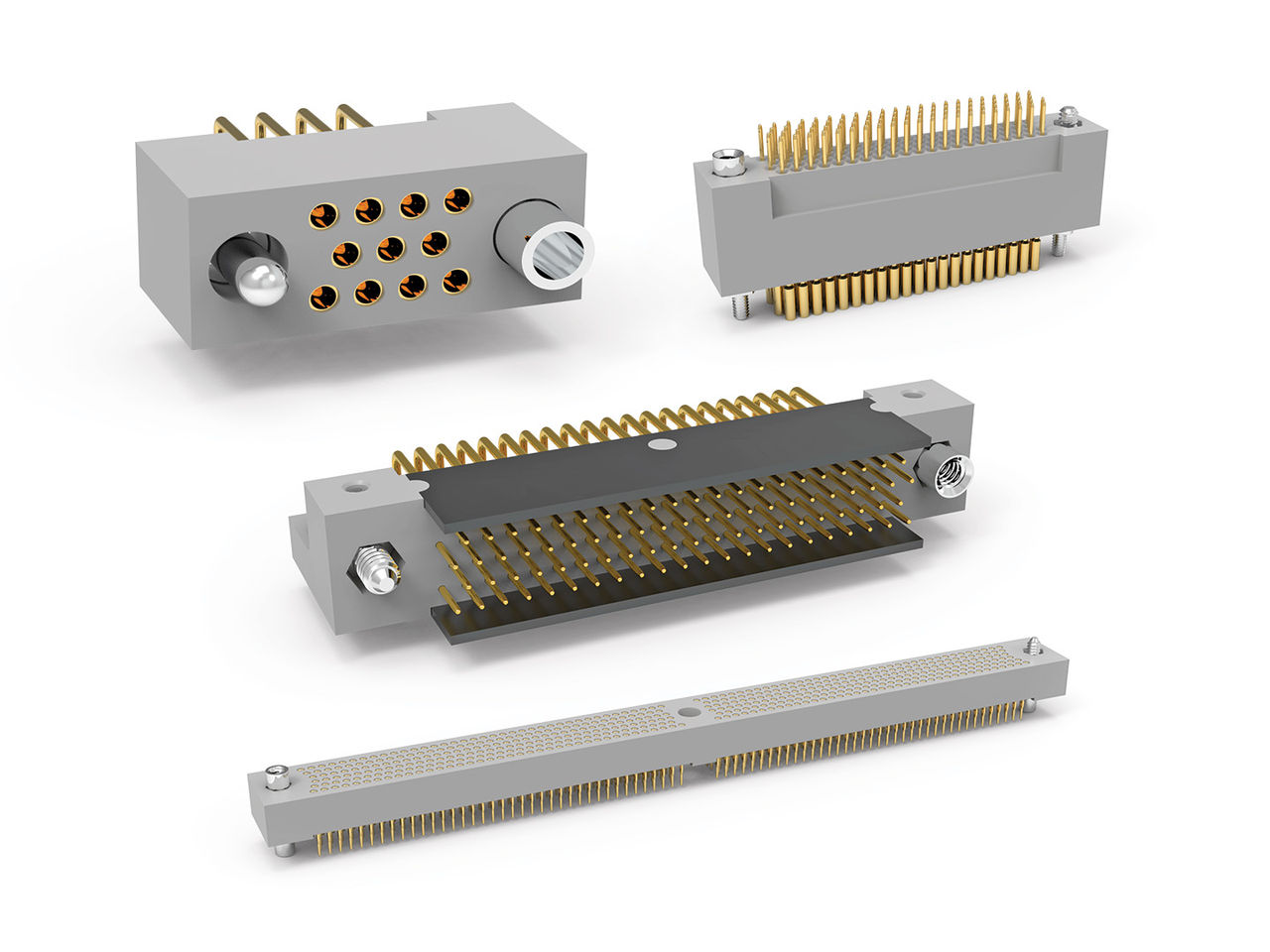

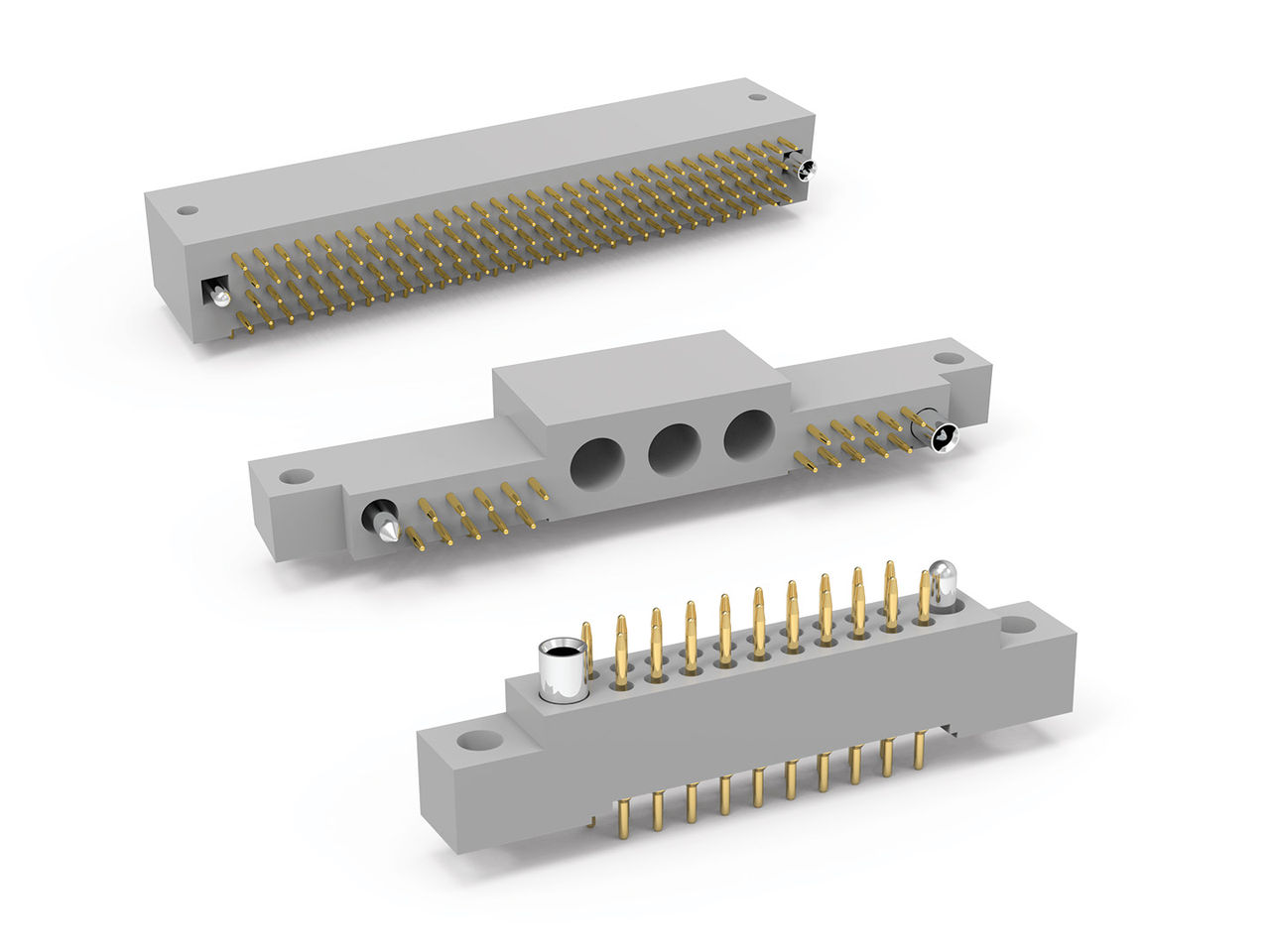

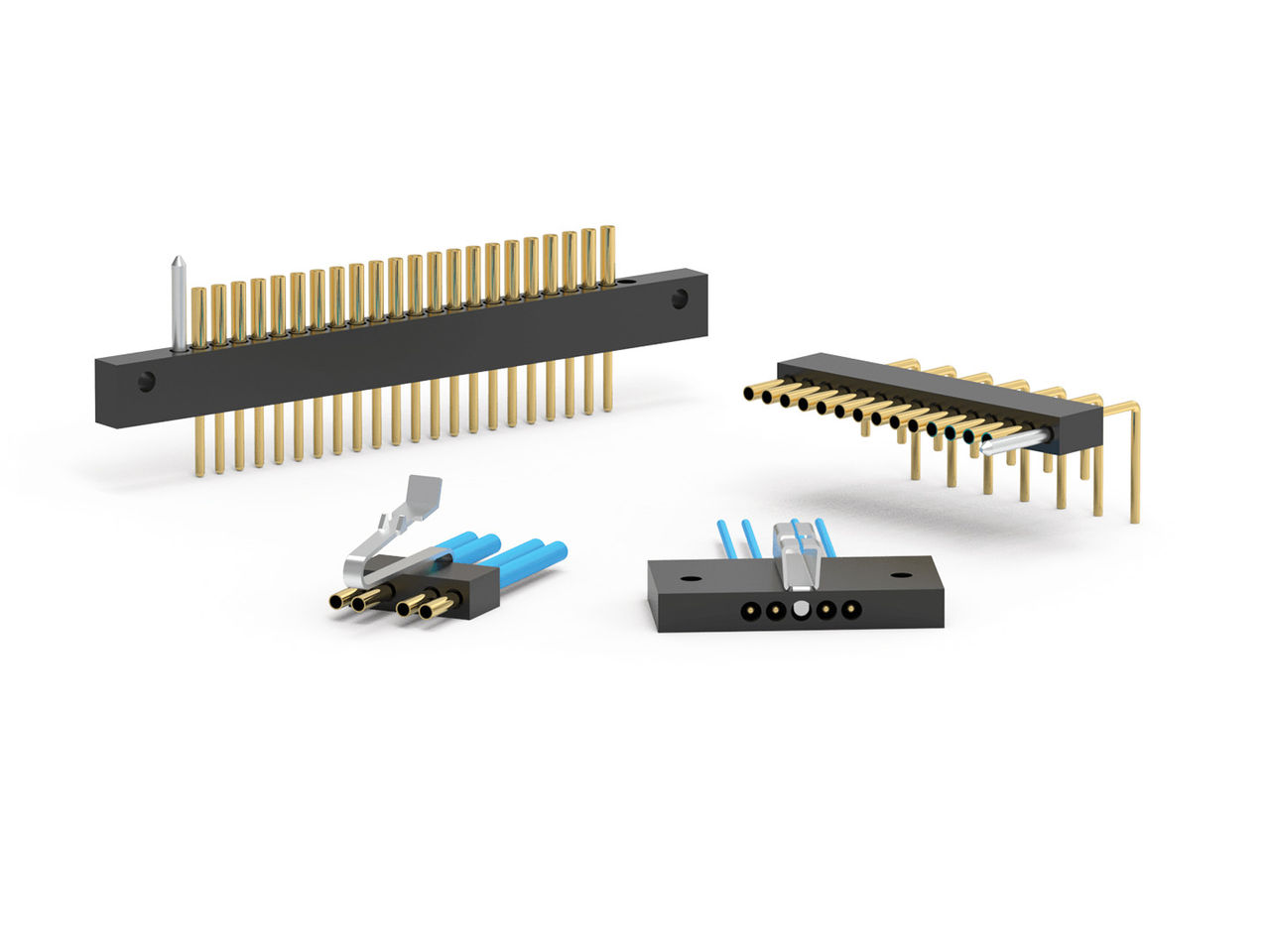

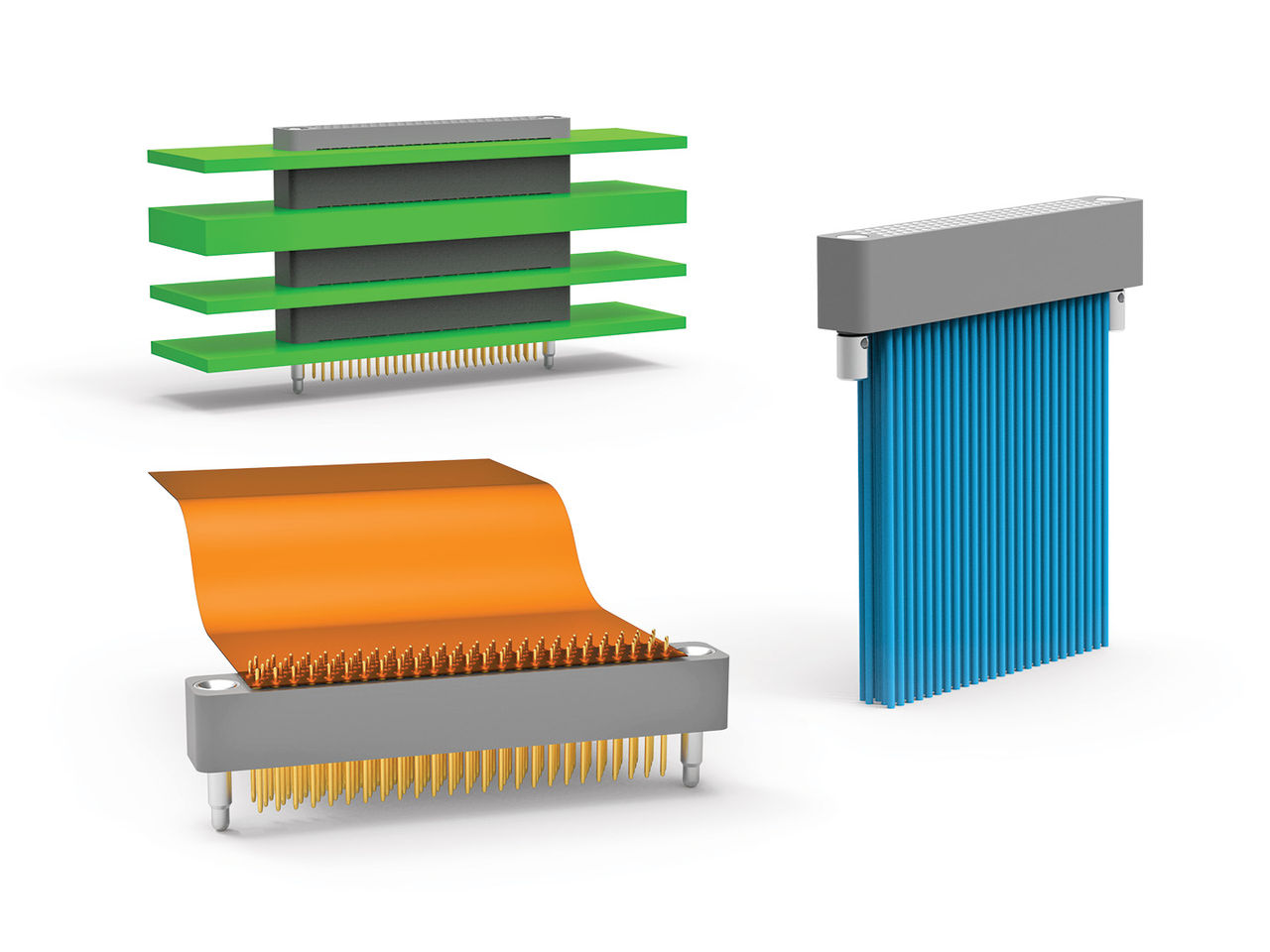

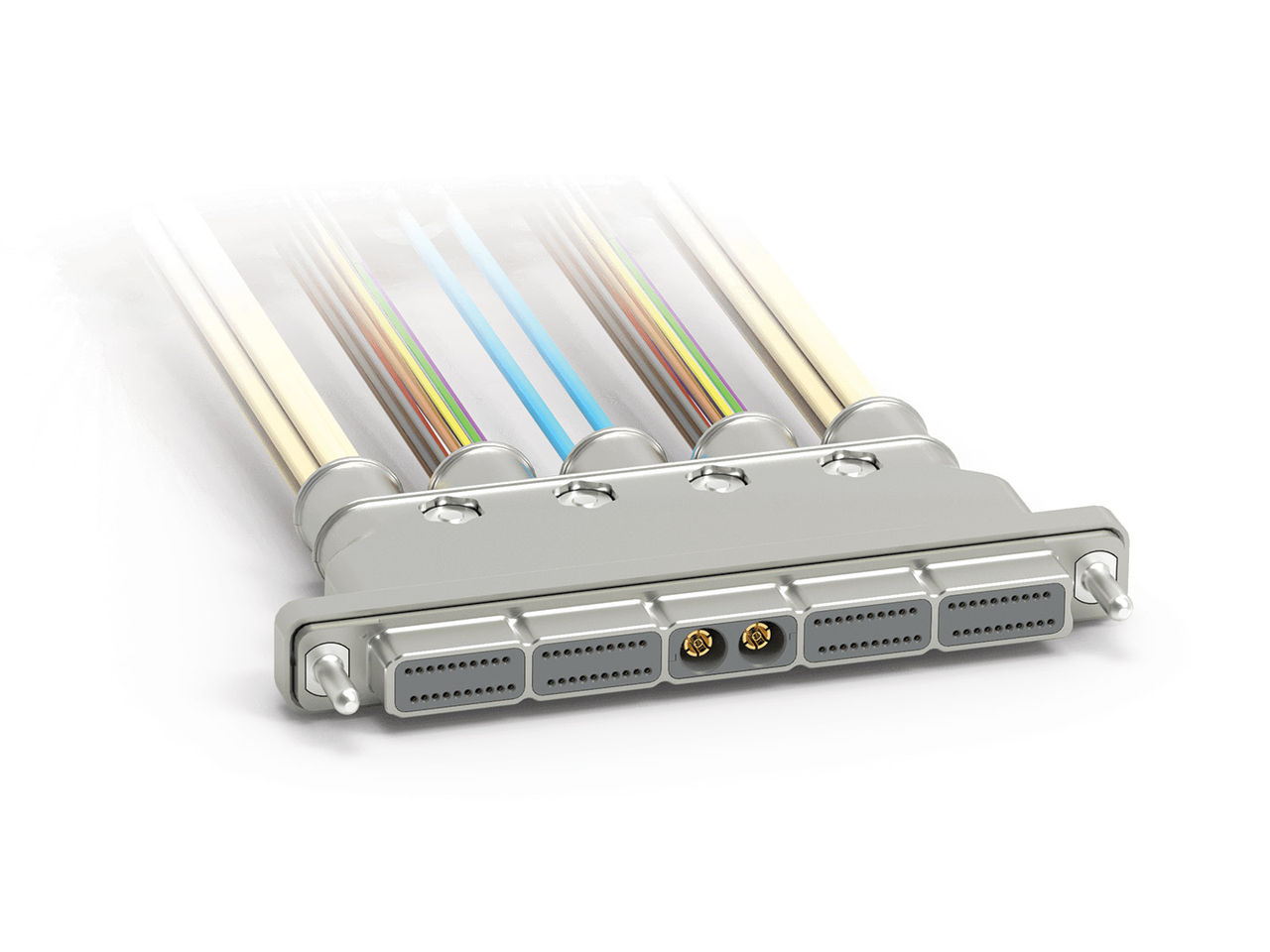

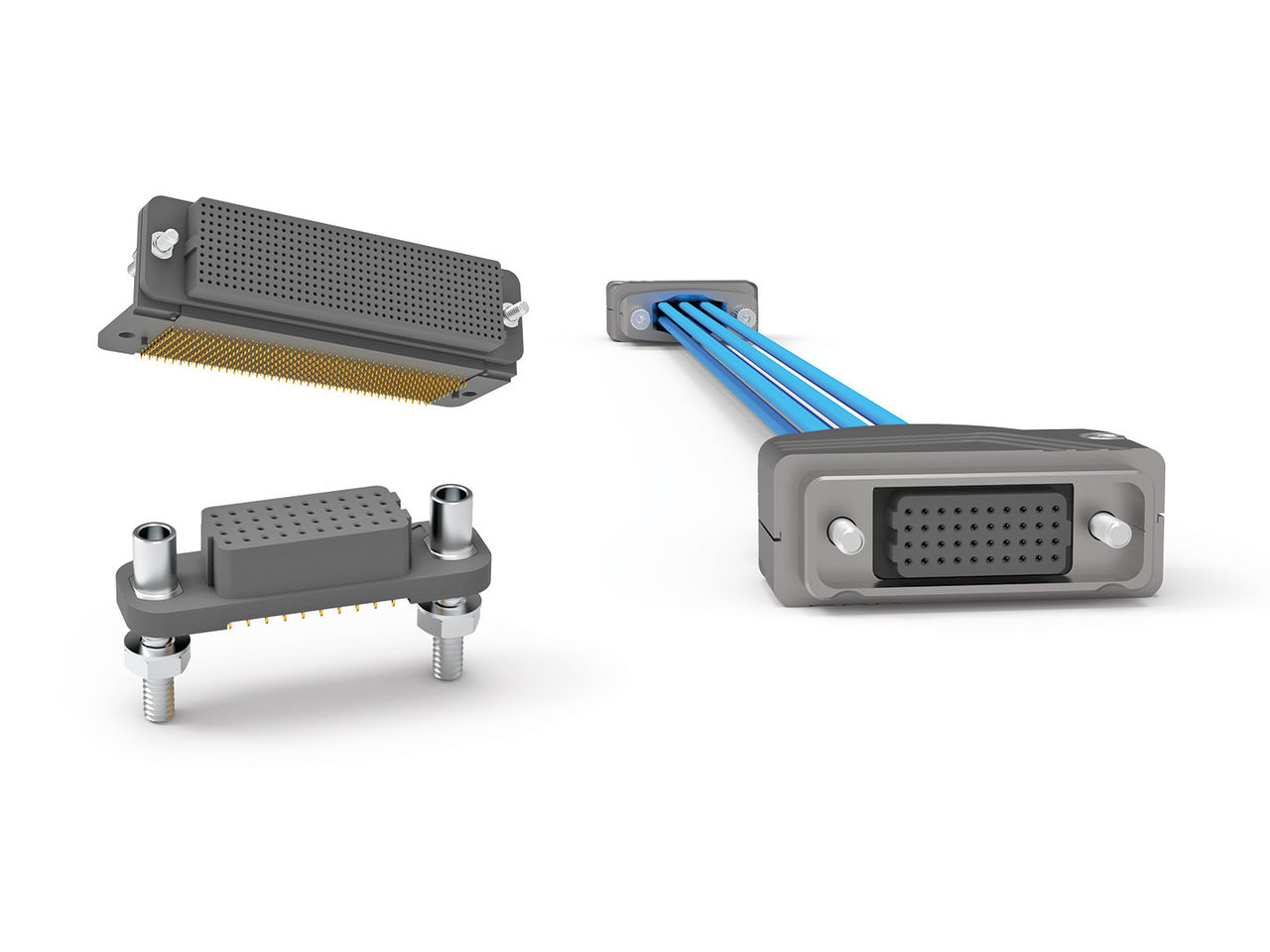

Rugged Wire-to-Board Connectors for Aerospace and Defense
Frequently Asked Questions
What is a wire-to-board connector?
A wire-to-board connector is an electrical and mechanical interface joining a PCB with a discrete wire or cable assembly. This connection can be used to transmit signals, power or both between electronic components and devices.
What are wire-to-board connectors used for?
Wire-to-board connectors are used to create a separable electrical connection between PCBs and electronic components, power sources, wire harnesses or other PCBs using discrete wires or cable assemblies. Wire-to-board connectors enable simpler manufacturing and maintenance, modular designs and streamlined upgradability when compared with hard-wired or soldered connections. Wire-to-board connectors are common in industrial automation, robotics, consumer electronics, medical devices, appliances, automotive electronics, and data communications equipment.
How do I select the right wire-to-board connector?
Selecting the correct wire-to-board connector involves choosing an interconnect solution that meets all the demands of the specific application. Features to consider include circuit count, current and voltage rating, pitch, wire gauge, overall connector size, operating environment, and locking or vibration-resistant features if needed.
What is the difference between wire-to-board and wire-to-wire connectors?
Wire-to-board connectors join PCBs with discrete wires or cable assemblies, while wire-to-wire connectors connect one wire or cable assembly directly to another and are not fixed to a PCB.
What is the connector pitch, and why is it important?
The connector pitch is the center-to-center distance between adjacent electrical contacts. Miniaturized connectors with small pitches are ideal for compact devices and high-density applications, while connectors with larger pitches can often support high-power transmission.
Which wire-to-board connectors are best for compact electronic devices?

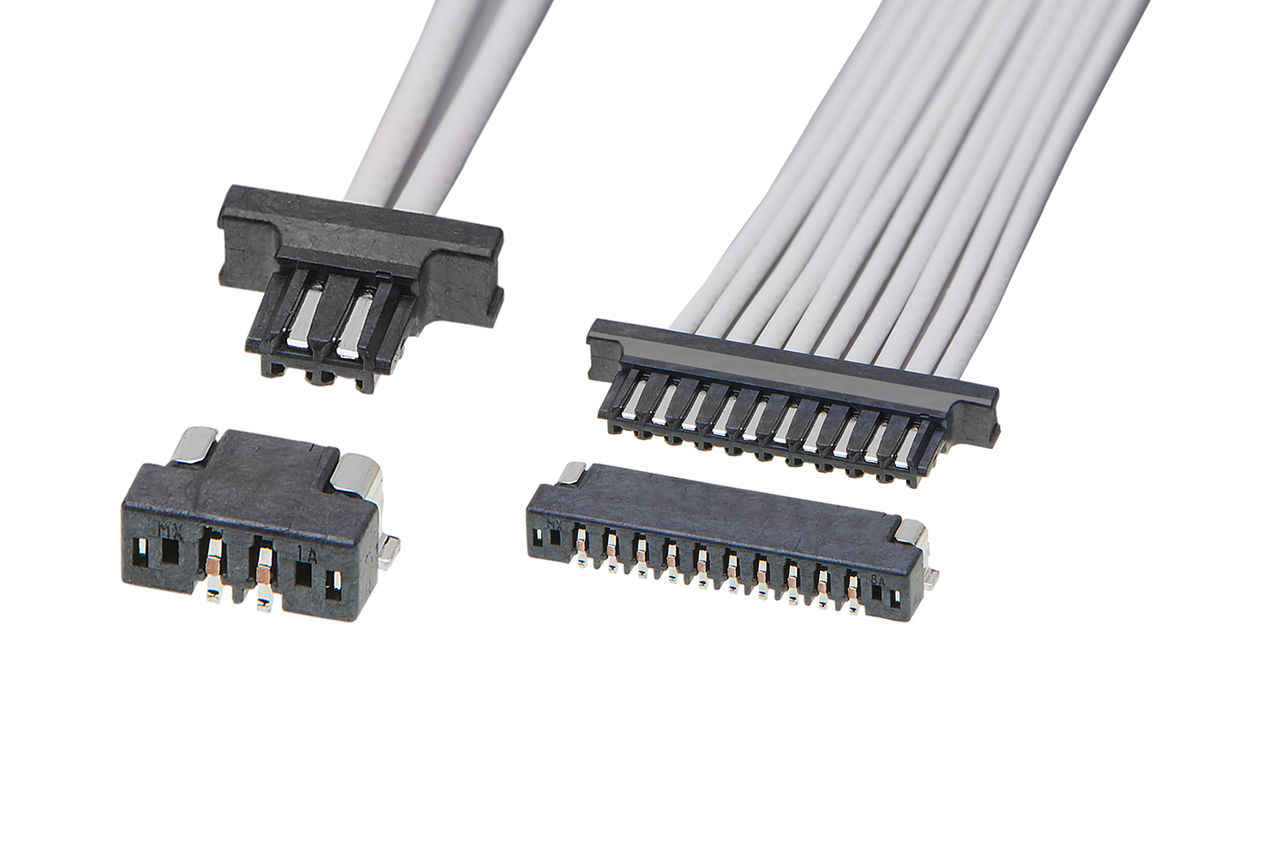

The best solutions for compact electronic devices are miniaturized, fine-pitch connectors designed to optimize PCB real estate. Compact wire-to-board connectors from Molex, such as Zero-Hachi Connectors, provide reliable connections with pitches as small as 0.80mm.
Are wire-to-board connectors available with locking features?
Yes, it is common for wire-to-board connectors to offer locking features, including positive locks, terminal position assurance (TPA), independent secondary locking (ISL) and audible mating confirmation. These features ensure reliability in applications prone to vibration or shock forces.
What features improve wire-to-board connector reliability?
Wire-to-board connector reliability is improved with locking features such as TPA, ISL or connector position assurance (CPA); polarization and anti-stubbing features that reduce assembly errors; and features such as dual-point contacts and fully shrouded headers that enhance electrical connections.
Are there wire-to-board connectors designed for high-vibration environments?
Yes, many wire-to-board from Molex are designed with locking mechanisms and multiple points of contact to improve electrical connectivity and reliability in applications subject to constant vibration or high shock forces.
Why choose Molex wire-to-board connectors?
Molex is a one-stop shop for electrical connectivity, offering a broad selection of wire-to-board connector solutions that includes miniaturized signal connectors, high-power systems, hybrid power-and-signal designs and positive-locking interconnects. Together with robust engineering support and a proven record of quality, these solutions support a wide range of applications across multiple industries and environments.
