Optimizing 48V Automotive Systems for Efficiency and Safety

48V technology is a key enabler for advanced automotive features such as electric turbocharging, regenerative braking and advanced infotainment systems. It provides a compelling solution for a range of vehicles, from gas-powered to electric, and is poised for widespread adoption.

But it’s not that easy. For 48V automotive systems to be successfully implemented, challenges such as standardization and cost reduction must be addressed.

How do we clear the hurdles to move forward? What will it take for 48V power to become the new normal? Let’s explore these questions together.

For decades, 12V electrical systems have powered everything from headlights to entertainment systems in vehicles. But the automotive industry is evolving, and the way vehicles are powered is evolving along with it.

By quadrupling the system voltage, 48V enables significant advancements in power delivery, representing a substantial departure from the conventional 12V electrical structure. This new level of power enables comprehensive and evolved features such as electric turbocharging, regenerative braking and battery preconditioning for accelerated auxiliary charging, to name a few. From wiring and connectors to power management systems and components, a fundamental redesign is necessary to maximize the technology benefits of 48V automotive systems.

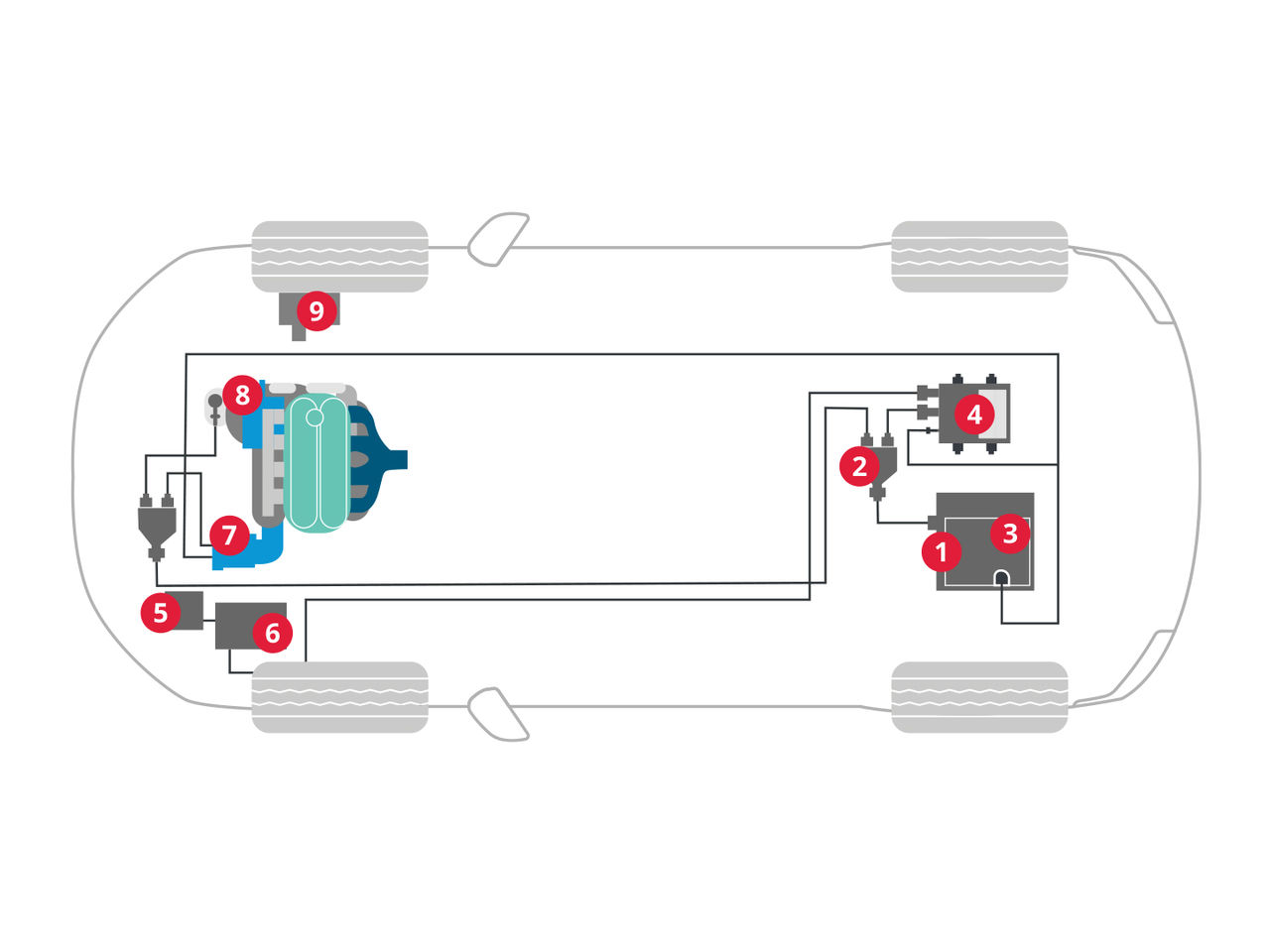

It’s important to focus on what differentiates 48V systems from traditional 12V systems. In addition to the fundamental components described above, here are the overarching features that highlight the evolution of vehicle power systems.

While increasing voltage from 12V to 48V can reduce amperage in some applications, assessing the system’s overall power requirements is crucial. Larger wire gauge might be sufficient for certain components, but high-power demands, like those of electric motors or high-power accessories, may still require bulky cables. Striking the right balance between voltage, amperage and wire gauge is essential to optimizing system efficiency and performance.

48V systems offer a significant boost in power output. This increased capacity enables the electrification of essential vehicle components, such as power steering pumps, air compressors and water pumps. By operating independently from the engine’s accessory drive, these components are expected to allow optimization for efficiency and reliability.

Reduced resistive losses in power transmission contribute to higher efficiency. Powering electric compressors and pumps directly from the 48V system reduces the engine load, enabling it to operate more efficiently. Regenerative braking, a core component of 48V systems, also significantly heightens efficiency by recovering energy that would otherwise be lost as heat.

48V technology is adaptable to a wide range of vehicle architectures, from traditional internal combustion engine (ICE) vehicles to fully electric models. This flexibility allows automakers to gradually introduce 48V systems into their product lines, as we will explore later. Additionally, 48V architecture lays the groundwork for future electrification strategies, offering a scalable path to higher voltage systems as battery technologies advance.

By understanding these core characteristics, we can better appreciate the benefits and applications of 48V technology in the automotive industry, recognizing the significant leap forward that 48V represents.

New 48V technology serves as a versatile platform that enhances vehicle efficiency and performance and benefits both traditional and electric vehicles. What does this mean for each market?

48V systems present significant advantages over traditional 12V systems, including improved power delivery for advanced features such as electric turbocharging, idle stop-start and regenerative braking. While some of these functions are possible with 12V systems, the higher voltage of 48V systems enables them to operate with greater efficiency and effectiveness. Additionally, 48V systems are better equipped to handle more demanding electrical loads, which translates to enhanced vehicle performance and improved fuel economy.

48V systems serve as a secondary power source for auxiliary components in EVs, easing the load on the primary high-voltage battery. In some instances, 48V architecture can accelerate charging times by aiding battery preconditioning. Incorporating 48V electronics aids overall EV efficiency by minimizing power losses, maximizing component performance and boosting energy recovery.

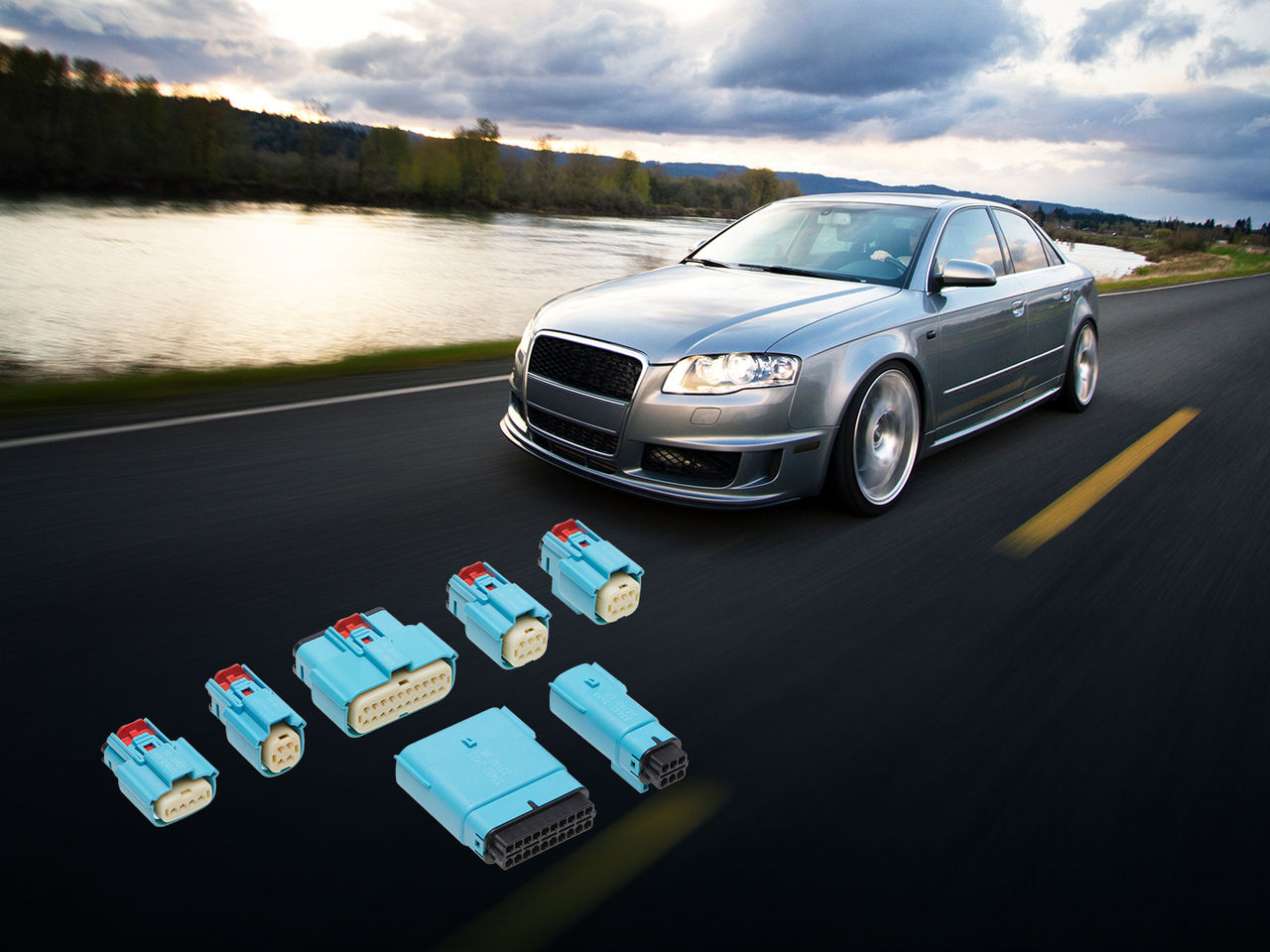

While 12V connectors have been adequate for decades, 48V electrical systems need a new level of connector performance and reliability. While 12V connectors may be able to handle higher currents, they would need to be designed with larger contact areas or different materials to ensure reliable performance and prevent overheating. This can lead to increased size and weight. However, because of advancements in 48V connector technology, advanced mid-voltage connectors can provide highly effective support for 48V automotive power systems.

While 48V connectors may utilize similar materials as 12V connectors, specific materials and their properties are crucial for ensuring reliable and efficient performance in 48V applications. Advanced materials like high-temperature resistant plastics and specialized metal alloys can enhance insulation, conductivity and overall durability, meeting the demanding requirements of 48V automotive systems.

Enhanced contact designs are essential to reduce contact resistance and improve current handling capabilities. This can be achieved through multiple contacts or larger contact surface areas. Robust locking mechanisms ensure secure connections in harsh automotive environments. Redesigned connector housings with larger contact areas and improved sealing mechanisms are also necessary to effectively handle higher currents and ensure reliable performance in 48V systems.

Precision manufacturing ensures tight tolerances and consistent performance, which is crucial for 48V connectors. Automated assembly processes facilitate production efficiency and minimize errors.

Advanced connectors undergo rigorous testing for performance validation under extreme conditions, including temperature cycling, vibration and humidity. Computer-aided engineering (CAE) tools can simulate connector performance and identify potential design vulnerabilities during the development stages.

By incorporating these advancements, connector manufacturers can produce products that meet the stringent specifications of 48V automotive systems, ensuring reliable and efficient power delivery.

The transition to 48V technology presents significant opportunities, but the path forward will require solutions such as standardization and cost reduction. As it adopts this new electrical architecture, the automotive industry must navigate a range of challenges. Success will require strategic planning, continuous innovation and strong industry collaboration.

If the shift to 48V automotive systems were simple, it would already be standard across the industry. However, a combination of technical and economic challenges has slowed the transition.

The adoption of 48V systems faces two major hurdles: cost and complexity. First, the upfront investment in 48V components, including batteries, power electronics and electric motors is likely to be higher than for traditional 12V systems, which can impact vehicle prices and potentially limit consumer interest. Second, integrating 48V technology into existing vehicle platforms is expected to require significant engineering efforts. Ensuring compatibility with current electrical systems and safety features adds both development time and costs for OEMs.

Interconnectivity and compatibility are critical hurdles in 48V system integration. This involves a deep understanding of the multiple requirements and complexities of the vehicle architecture and, therefore, a careful connector selection to ensure system reliability and efficiency. These systems must support reliable and secure data communication to optimize the performance of the 48V-powered components. Engineers must also address electromagnetic interference (EMI) to ensure safe and reliable vehicle operation, preventing disruption between the high-voltage system and other electronic components. The higher voltage levels in 48V systems can lead to increased EMI emissions, making it more challenging to shield against interference than it is with lower voltage systems. Wiring and harness designs are crucial, as higher voltage and current requirements introduce challenges related to weight, space and cost.

Incorporating 48V automotive systems calls for careful thermal management and electrical system architecture modifications to ensure optimal performance and reliability. To prevent overheating, engineers must include efficient cooling systems for 48V components, such as the battery and power electronics, into the overall vehicle thermal management strategy. Modifying the electrical architecture of existing vehicle models to accommodate 48V components while ensuring compatibility with the existing 12V system demands careful planning and design.

Overcoming barriers to 48V system adoption warrants a strategic, collaborative approach. For manufacturers and tiers, addressing these challenges means quickly delivering clear value.

Reducing costs is critical for both manufacturers and consumers. Achieving economies of scale is one effective strategy. Standardizing components across vehicles can decrease manufacturing complexity and costs. Whether through shared drivetrains or uniform infotainment systems, standardization enables more efficient production while supporting the adoption of advanced power systems.

Engineers have options regarding difficult design considerations. They can address thermal management concerns by adopting advanced cooling technologies, such as liquid cooling and heat exchangers, to manage thermal loads effectively. Flexible and scalable electrical system architectures are essential to accommodate 48V components while maintaining compatibility with existing systems.

This will involve work from every stakeholder, from design to the final product, but achieving widespread popularity of the 48V system will allow the automotive industry to continue making meaningful technological leaps.

Initially focused on mild and plug-in hybrid vehicles, 48V automotive systems offer broad applicability across the automotive landscape, including traditional ICE vehicles. Far from being just a transitional step, 48V technology represents an even larger platform for groundbreaking innovation. Let’s delve into why this is the case.

The increased electrical power density from 48V systems opens up a wide range of possibilities for expanding vehicle performance, comfort and functionality.

By powering electric compressors or motors, 48V systems can drive turbochargers or superchargers independently of the engine, eliminating turbo lag and boosting low-end torque. Additionally, these systems enable efficient energy recovery during deceleration, storing energy in the battery for later use and optimizing fuel consumption and overall performance.

48V technology transforms comfort and convenience features by enabling the efficient operation of electrically powered components such as air compressors, water pumps and power steering systems. This translates to more responsive and efficient climate control, precise engine temperature management and superior steering responsiveness, elevating the experience for both the driver and passengers.

Advanced driver assistance systems (ADAS) greatly benefit from the robust power delivery of 48V automotive systems. By delivering higher current and voltage, these systems can efficiently power the sensors, actuators and control units required for ADAS functionalities. From radar to LiDAR systems to electric power steering and braking, 48V ensures reliable and responsive operation, elevating vehicle safety and driver confidence. This enhanced power delivery paves the way for more complex ADAS functions, such as automated parking, highway pilot and — ultimately — full autonomous driving.

Elevating vehicle comfort and luxury, 48V systems enable more complex and sophisticated features than traditional 12V systems. This includes — but is certainly not limited to — accessories such as multi-contour seat adjustment, advanced ventilation systems and enhanced climate control. This expanded capability creates a more refined and personalized experience for drivers and passengers alike.

48V power systems open the potential for V2L options, turning vehicles into mobile power sources. With sufficient power density, 48V systems can enable bidirectional power flow, allowing stored energy to be discharged to external devices. This functionality expands a vehicle’s utility, enabling it to power camping equipment, electronic devices or even serve as a backup power source during emergencies.

The development of 48V power systems provides additional opportunities beyond passenger car in-vehicle features and accessories. It extends to promising potential gains in emerging vehicle segments.

By targeting these emerging vehicle segments, the 48V technology can expand its market reach and contribute to the overall electrification of the transportation industry.

The automotive industry is undergoing a major transformation as it moves from traditional 12V electrical systems toward more advanced electrified powertrains. While fully electric vehicles are gaining traction in market share, mild hybrid electric vehicles (MHEVs) with 48V systems offer a viable interim solution. These vehicles combine the  benefits of electrification with the familiarity of internal combustion engines. MHEVs deliver these advantages without the significant costs and infrastructure requirements associated with EVs.

Despite the promise of 48V technology, its adoption is still in the relatively early stages. While some automakers have introduced mild hybrid models, the technology is far from reaching its full potential. To accelerate the transition to a 48V future, a comprehensive roadmap is essential. The following guide outlines key strategies to answer the question: how do we get from here to there?

A modular 48V platform offers a standardized, flexible architecture that can be tailored to various vehicle sizes, types and power demands. This platform consists of interchangeable components, such as electric motors, inverters, DC-DC converters and  batteries, which can be combined in different configurations to meet specific vehicle needs. Like building blocks, this approach enables automakers to efficiently develop and produce a diverse range of vehicles while maximizing component sharing and reducing development costs. Ideally, a modular 48V platform would be utilized across a broad spectrum of vehicles within an automaker’s lineup.

By developing modular 48V platforms, automakers can elevate economies of scale, shorten time to market and maintain the flexibility to adapt to changing market trends and consumer preferences. This standardized approach also simplifies the integration of advanced features, such as electric power steering, electric compressors and thermal management systems.

Strategic partnerships are key to accelerating 48V system development and expanding market penetration. Automakers and component suppliers must collaborate to overcome technical challenges and establish industry standards. This close cooperation is essential for optimizing system integration, reducing development costs and speeding up time to market.

Joint research and development should focus on upgrading components such as inverters, electric motors and energy storage systems. Equally important is establishing standardized communication and electrical architectures to ensure smooth integration across different vehicle models. By pooling expertise and resources, the industry can work together to broaden the market reach of 48V systems.

Ongoing research and development are crucial to fine-tuning 48V system performance and reducing costs over time. And these are key to accelerating widespread adoption. Focus areas include advancing battery technology to increase energy density, power output and lifespan while finding cost-saving opportunities.

However, automotive design engineers must also prioritize the development of more efficient and compact power electronics, such as inverters and DC-DC converters, to improve system capabilities and minimize losses. Advancements in electric motors and generators, particularly in power density and torque output, are also important for fine- tuning system performance. Additionally, innovative thermal management solutions are vital to maintaining optimal operating conditions for 48V components and extending their lifespan.

By following these steps and applying knowledge gained along the way, the automotive industry can gradually transition to full 48V adoption while mitigating risks and maximizing benefits.

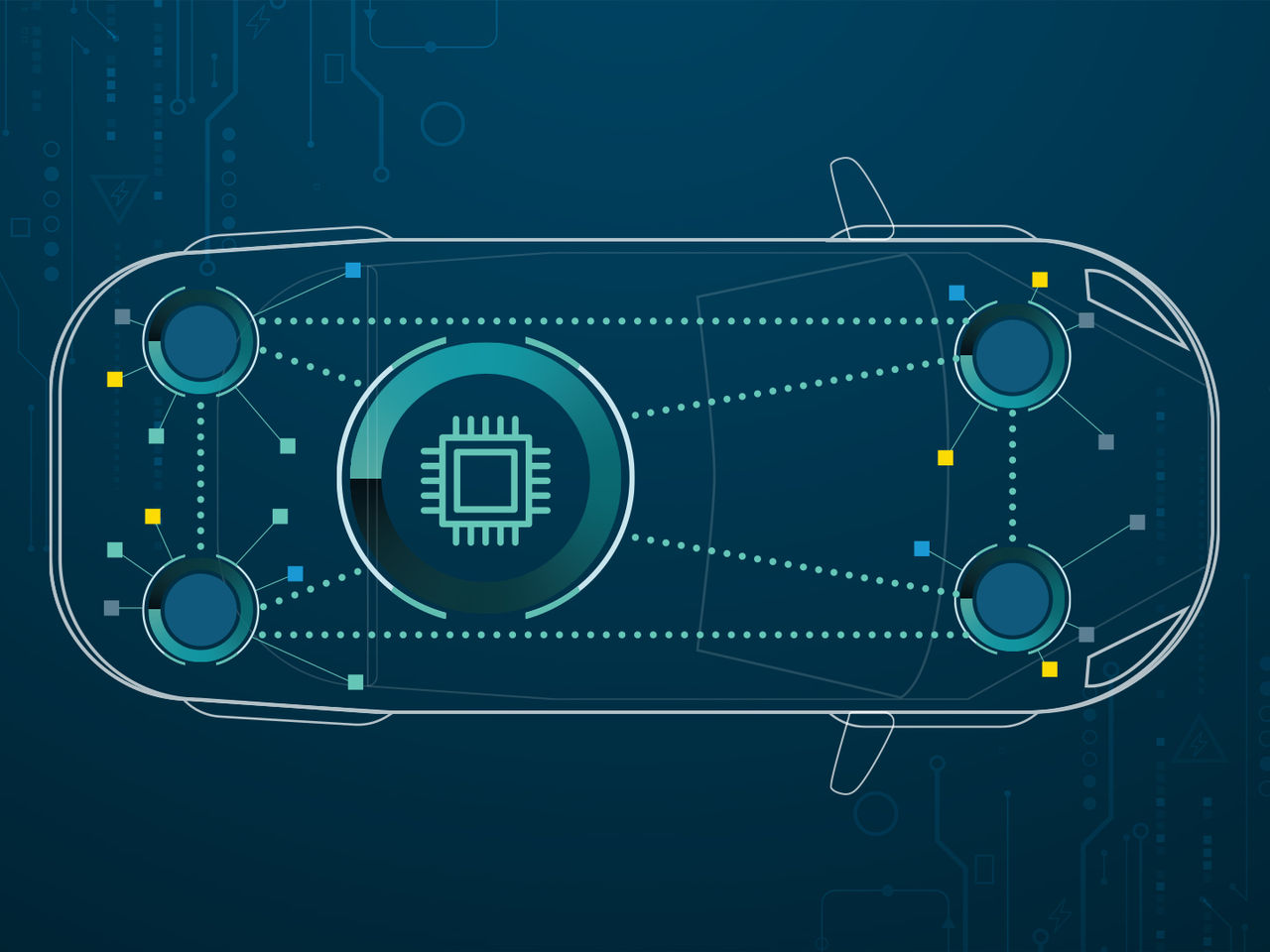

Zonal architecture provides a clear advantage over traditional vehicle electrical systems when incorporating 48V technology. By segmenting the vehicle into distinct electrical zones, each with its own control unit and power supply, this approach simplifies the implementation of 48V components.
