Automotive USB Power Delivery Modules

Tomorrow’s vehicles need more in-cabin power, and the USB power delivery (USB-PD) systems that provide it must balance performance, thermal requirements and vehicle architecture constraints. Molex provides flexible, durable 45 to 180W systems that help automotive designers optimize power delivery while minimizing costs, heat and packaging complexity.

Find Parts Contact Us
Power Output Configuration Vehicle Integration Architecture Ready
 45 to 180W total output (up to 100W per port), USB-PD 3.x/EPR capable Single and dual port; charger only or charger + data; slim and standard form factors LIN integration, optional CAN, intelligent load shedding and thermal protection, EPR and AVS 12 and optional 48V support; central power compatible; zonal and SDV ready

In-Vehicle USB Hubs and Chargers

Find Parts

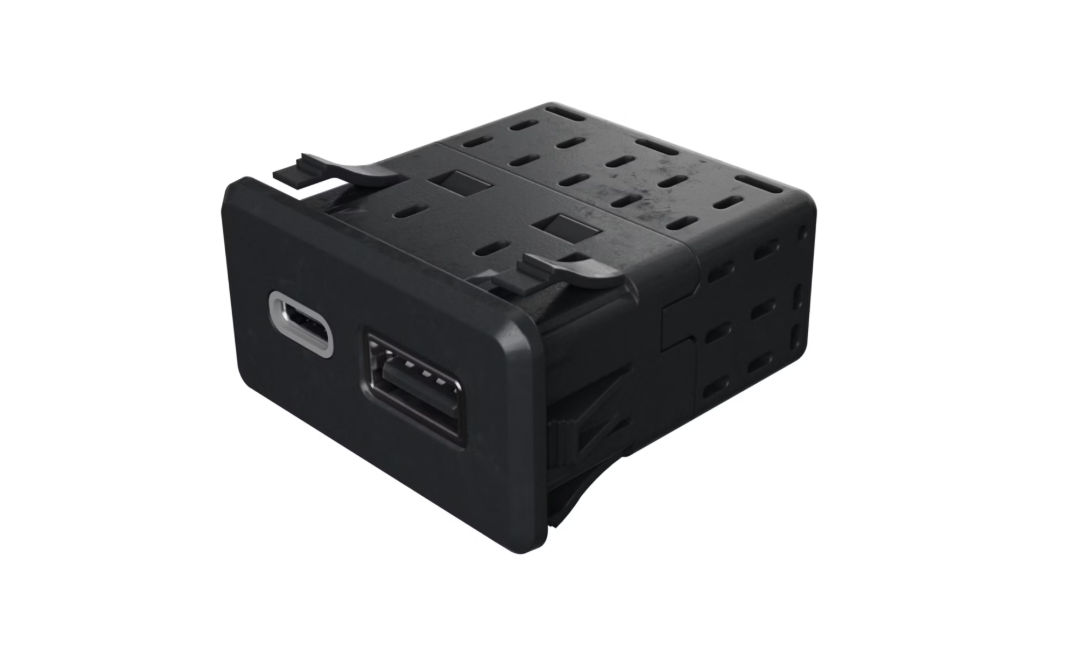

In-vehicle dual port smart charger with USB Type A and USB Type C ports.

Features and Benefits

Automotive design engineers are challenged with balancing the increasing demands for laptop-class charging inside the vehicle with tight packaging constraints and cost pressures. Delivering higher wattage requires advanced management of heat, wiring complexity and vehicle power budgets.

Molex provides scalable USB-PD architectures with up to 180W total output, intelligent load and thermal management, and vehicle network integration designed for centralized and zonal electrical systems. Molex solutions enable dynamic power sharing and LIN/CAN integration within compact 20.00mm-height modules, enabling sustainable performance for real-world conditions.

Scalable High-Power Architecture

Rising power expectations increase cost and thermal burden. Molex offers flexible 45 to 180W USB-PD platforms with intelligent power sharing and dynamic switching, preserving system efficiency while maintaining the user experience.

Intelligent Thermal and Load Management

High power output in compact spaces requires active control. Molex load-shedding logic, high-efficiency DC-DC design and optimized thermal paths protect the vehicle electrical system while sustaining performance in variable ambient conditions.

Vehicle Architecture Integration

Supporting network-aware modules that optimize electrical system performance, Molex USB solutions support LIN and optional CAN integration, 48V compatibility and centralized power designs for next-generation software-defined vehicles.

Engineering Performance

Optimizes space for constrained console designs
The compact 20.00mm module height and 41.00 to 55.00mm depth options reduce the footprint and improve design flexibility without compromising performance.

Offers configurable thermal performance
Aluminum or polymer housing options enable cost-efficient operation based on ambient requirements, helping reduce failure rates in harsh conditions.

Platform Scalability

Supports multi-device functionality
Shared-power configurations including 60, 90 and 100W split architectures enable complex power distribution designs and reduce system complexity.

Enables unified consumer device platforms
Combined USB and wireless capabilities offer integrated systems that support next-generation architectures, minimizing upgrade costs and engineering time.

System-Level Efficiency

Reduces system weight
Central power compatibility helps simplify wiring and e-fuse counts, lowering overall system weight and improving vehicle efficiency.

Simplifies future system evolution
The upgradable and service-ready design supports upgrades to future high-wattage systems without a full redesign, reducing costs and development time.

Applications by Industry

Center stack systems
In-cabin applications

Frequently Asked Questions

What are automotive USB modules?

Automotive USB modules from Molex are vehicle-grade assemblies that incorporate USB connections inside the vehicle. USB power delivery (PD) modules provide battery charging capability, while data connections may also be included to provide an interface between a mobile device and the vehicle’s network. These modules are designed to be rugged and reliable, capable of withstanding the shocks, vibration and temperature variations found in automotive environments.

What is the maximum power supported by Molex automotive USB modules?

Molex supports scalable USB-PD architectures from 45 to 180W total output, with up to 100W per port depending on configuration.

Do Molex USB modules support 48V vehicle systems?

Yes. Select platforms support optional 48V architectures and centralized power integration strategies.
